SSL-LX5063IT

Active

Lumex Opto/Components Inc.

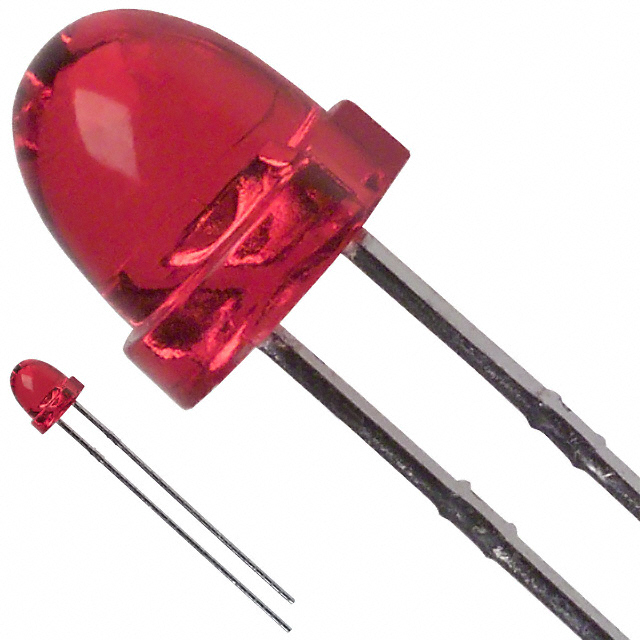

LED RED CLEAR T-1 3/4 T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX5063IT

Active

Lumex Opto/Components Inc.

LED RED CLEAR T-1 3/4 T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSL-LX5063 Series

Red LED Indication - Discrete 2V Radial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX5063IT	SSL-LX5063 Series

Color	Red	Red, Yellow, Green
Configuration	Standard	Standard, Bidirectional
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	6 mm	6 mm
Lens Color	Red	Red, Yellow, Colorless, Green, White
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Diffused, Clear
Millicandela Rating	50 mcd	5 - 200 mcd
Millicandela Rating	-	20 mcd
Millicandela Rating	-	30 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	T-1 3/4	T-1 3/4
Viewing Angle	30 °	30 - 60 °
Voltage - Forward (Vf) (Typ)	2 V	2 - 2.2 V
Wavelength - Peak	635 nm	565 - 700 nm

SSL-LX5063 Series

LED RED DIFFUSED T-1 3/4 T/H

Part	Color	Wavelength - Peak	Current - Test	Package / Case	Lens Color	Configuration	Mounting Type	Supplier Device Package	Viewing Angle	Height (Max) [Max] [z]	Lens Transparency	Lens Size	Lens Size	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSL-LX5063HD	Red	700 nm	20 mA	Radial	Red	Standard	Through Hole	T-1 3/4	60 °	6 mm	Diffused	T-1 3/4	5 mm	5 mcd	2 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5063YT	Yellow	585 nm	20 mA	Radial	Yellow	Standard	Through Hole	T-1 3/4	30 °	6 mm	Clear	T-1 3/4	5 mm	40 mcd	2.1 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5063IC	Red	635 nm	20 mA	Radial	Colorless	Standard	Through Hole	T-1 3/4	30 °	6 mm	Clear	T-1 3/4	5 mm	160 mcd	2 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5063LGT	Green	565 nm	20 mA	Radial	Green	Standard	Through Hole	T-1 3/4	30 °	6 mm	Clear	T-1 3/4	5 mm	40 mcd	2.2 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5063IGW	Green, Red	565 nm, 635 nm	20 mA, 20 mA	Radial	White	Bidirectional	Through Hole	T-1 3/4	60 °	6 mm	Diffused	T-1 3/4	5 mm		2 V, 2.2 V	Round with Domed Top	20 mcd	30 mcd
Lumex Opto/Components Inc. SSL-LX5063GT	Green	565 nm	20 mA	Radial	Green	Standard	Through Hole	T-1 3/4	30 °	6 mm	Clear	T-1 3/4	5 mm	100 mcd	2.2 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5063GC	Green	565 nm	20 mA	Radial	Colorless	Standard	Through Hole	T-1 3/4	30 °	6 mm	Clear	T-1 3/4	5 mm	100 mcd	2.2 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5063ID	Red	635 nm	20 mA	Radial	Red	Standard	Through Hole	T-1 3/4	60 °	6 mm	Diffused	T-1 3/4	5 mm	40 mcd	2 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5063GD	Green	565 nm	20 mA	Radial	Green	Standard	Through Hole	T-1 3/4	60 °	6 mm	Diffused	T-1 3/4	5 mm	30 mcd	2.2 V	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5063YC	Yellow	585 nm	20 mA	Radial	Colorless	Standard	Through Hole	T-1 3/4	30 °	6 mm	Clear	T-1 3/4	5 mm	40 mcd	2.1 V	Round with Domed Top
