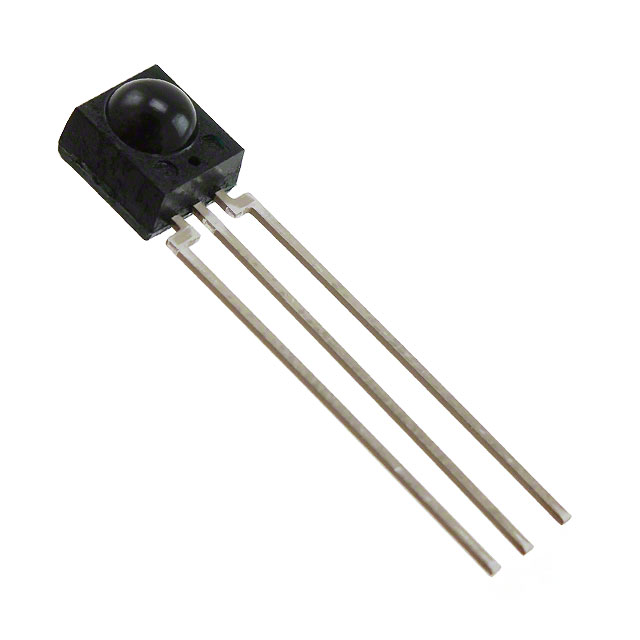

RPM6938
ObsoleteRohm Semiconductor
SENSOR REMOTE REC 37.9KHZ 16M
RPM6938
ObsoleteRohm Semiconductor
SENSOR REMOTE REC 37.9KHZ 16M
Description
General part information
RPM6938
Remote Receiver Sensor 37.9kHz 16m Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | RPM6938 |
|---|---|
| B.P.F. Center Frequency | 37.9 kHz |
| Current - Supply | 1.5 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -30 °C |
| Orientation | Side View |
| Sensing Distance | 16 m |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
