PN-1334-AMB
ActiveBUD INDUSTRIES
PLASTIC ENCLOSURE, WALL MOUNT, POLYCARBONATE, 200 MM, 120 MM, 75 MM, IP68
PN-1334-AMB
ActiveBUD INDUSTRIES
PLASTIC ENCLOSURE, WALL MOUNT, POLYCARBONATE, 200 MM, 120 MM, 75 MM, IP68
Description
General part information
PN-1334-AMB

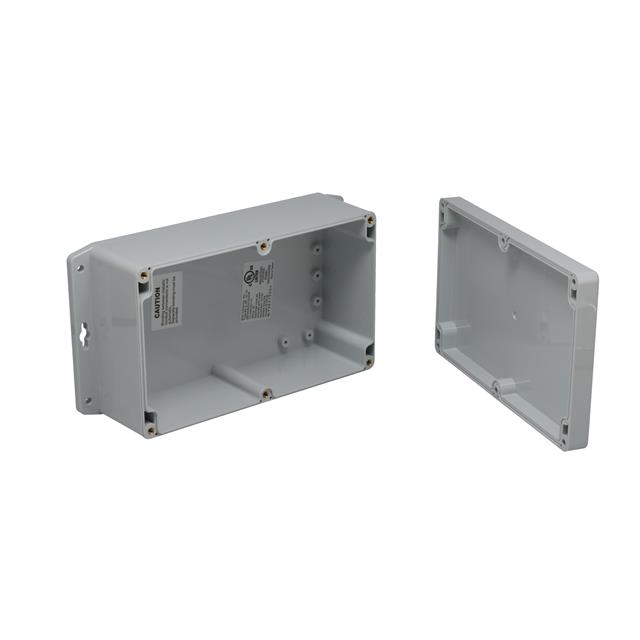

Box Plastic, Polycarbonate Light Gray Cover Included 7.870" L x 4.720" W (199.90mm x 119.89mm) X 2.950" (74.93mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PN-1334-AMB |
|---|---|
| Area (L x W) | 37.1 in² |
| Color | Light Gray |
| Container Type | Box |
| Design | Cover Included |
| Height | 2.95 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 HB |
| Ratings | 4, 6P, 2, NEMA 1, 12, 13, 6, UL-508, IP68, 4X |
| Size / Dimension Length | 7.87 in |
| Size / Dimension Width | 4.72 in |
| Thickness | 0.12 in |
