PT-SAS-SL8-4.0-250
ActivePactech

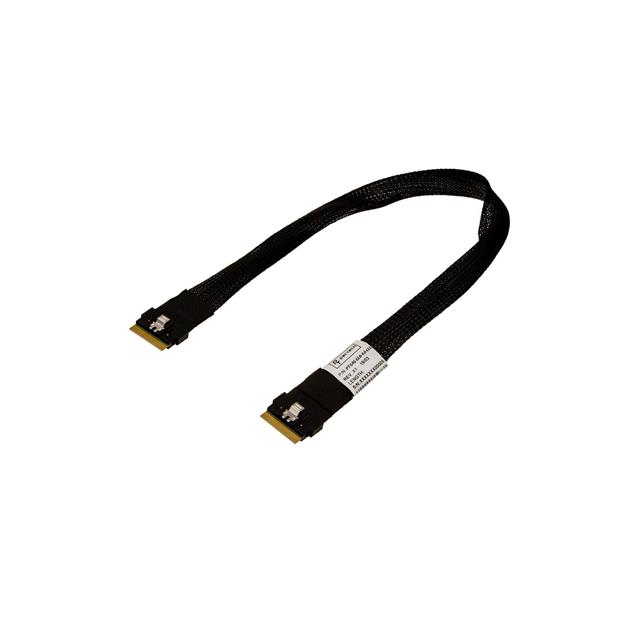

SLIMSAS 8I STR TO STR 0.25M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT-SAS-SL8-4.0-250
ActivePactech
SLIMSAS 8I STR TO STR 0.25M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT-SAS-SL8-4.0-250 | PT-SAS-SL8 Series |
|---|---|---|
| Cable Connectors | SlimSAS SFF-8654 8i | SlimSAS SFF-8654 8i, OCulink SFF 8611 4i, SATA(4), SlimSAS SFF-8654 8i, SATA (8), SlimSAS SFF-8654 4i (2), miniSAS HD 4i |
| Cable Type | Flat | Round, Flat, Round, Twin Axial |
| Color | Black | Black, Black, Multiple |
| Connector Type | Plug to Plug | Plug to Plug (2), Plug to Plug, Plug to Receptacle, Plug to Receptacle (8), SlimSAS SFF-8654 8i to SFF-8639 and Male Power Connector |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Raid friendly for Broadcom MegaRAID 9560-8i, 24Gbps SAS 4.0, DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | Raid friendly for Broadcom MegaRAID 9560-8i, 24Gbps SAS 4.0, DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, 12Gbps SAS 3.0, 8Gbps PCI-e Gen3 |
| Frequency - Max [Max] | 12 Gbps | 8 - 24 Gbps |
| Gender | Male to Male | Male to Male (2), Male to Male, Male to Female, Male to Female (8) |
| Length | - | 600 mm |
| Length | - | 1.96 ft |
| Length [x] | 250 mm | 0.75 - 700 mm |
| Length [x] | 9.84 in | 1.64 - 9.84 in |
| Length [x] | 9.843 in | 9.843 in |
| Number of Positions | 74 | 7 - 74 |
| Number of Positions | - | 8 |
| Number of Positions | - | 38 (2) |
| Shielding | Shielded | Shielded |
| Usage | Internal | Internal |
| Wire Gauge | - | 30 - 32 AWG |
PT-SAS-SL8 Series
SLIMSAS 8I TO 2XOCULINK 4I 0.25M
| Part | Fastening Type | Cable Type | Usage | Wire Gauge | Cable Connectors | Shielding | Gender | Color | Features | Length [x] | Length [x] | Length [x] | Number of Positions | Frequency - Max [Max] | Connector Type | Number of Positions | Number of Positions | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pactech PT-SAS-SL8-OCUX2-4.0-250 | Latch Lock | Round | Internal | 32 AWG | OCulink SFF 8611 4i, SlimSAS SFF-8654 8i | Shielded | Male to Male (2) | Black | 24Gbps SAS 4.0, DELL PowerEdge RAID Controller H745, Raid friendly for Broadcom MegaRAID 9560-8i, SlimSAS SFF-8654 | 250 mm | 9.84 in | 9.843 in | 42, 74 | 16 Gbps | Plug to Plug (2) | ||||
Pactech PT-SAS-SL8-RA-250 | Latch Lock | Flat | Internal | 30 AWG | SlimSAS SFF-8654 8i | Shielded | Male to Male | Black | 12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | 250 mm | 9.84 in | 9.843 in | 74 | 12 Gbps | Plug to Plug | ||||
Pactech PT-SAS-SL8-4S-500 | Latch Lock | Flat | Internal | 30 AWG | SATA(4), SlimSAS SFF-8654 8i | Shielded | Male to Female | Black | 8Gbps PCI-e Gen3, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | 500 mm | 1.64 ft | 7, 74 | 8 Gbps | Plug to Receptacle | |||||
Pactech PT-SAS-SL8-8S-100 | Latch Lock | Round | Internal | 30 AWG | SlimSAS SFF-8654 8i, SATA (8) | Shielded | Male to Female (8) | Black | 8Gbps PCI-e Gen3, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | 1 m | 3.28 ft | 7, 74 | 8 Gbps | Plug to Receptacle (8) | 8 | ||||
Pactech PT-SAS-SL8-SL4X2-050 | Latch Lock | Flat | Internal | 30 AWG | SlimSAS SFF-8654 4i (2), SlimSAS SFF-8654 8i | Shielded | Male to Male | Black | 12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | 500 mm | 1.64 ft | 74 | 16 Gbps | Plug to Plug | 38 (2) | ||||
Pactech PT-SAS-SL8-43X2-700 | Latch Lock | Flat | Internal | 32 AWG | miniSAS HD 4i, SlimSAS SFF-8654 8i | Shielded | Male to Male | Black | 8Gbps PCI-e Gen3, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | 700 mm | 2.3 ft | 36, 74 | 16 Gbps | Plug to Plug | |||||
Pactech PT-SAS-SL8-OCUX2-4.0-1000 | Latch Lock | Round | Internal | 32 AWG | OCulink SFF 8611 4i, SlimSAS SFF-8654 8i | Shielded | Male to Male (2) | Black | 24Gbps SAS 4.0, DELL PowerEdge RAID Controller H745, Raid friendly for Broadcom MegaRAID 9560-8i, SlimSAS SFF-8654 | 1 m | 3.28 ft | 42, 74 | 16 Gbps | Plug to Plug (2) | |||||
Pactech PT-SAS-SL8-LSE-LP-050 | Latch Lock | Flat | Internal | SlimSAS SFF-8654 8i | Shielded | Male to Male | Black | 12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | 500 mm | 1.64 ft | 74 | Plug to Plug | |||||||
Pactech PT-SAS-SL8-SL4X2-1000 | Latch Lock | Flat | Internal | 30 AWG | SlimSAS SFF-8654 4i (2), SlimSAS SFF-8654 8i | Shielded | Male to Male | Black | 12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | 1 m | 3.28 ft | 74 | 16 Gbps | Plug to Plug | 38 (2) | ||||
Pactech PT-SAS-SL8-LSE-LP-075 | Latch Lock | Flat | Internal | SlimSAS SFF-8654 8i | Shielded | Male to Male | Black | 12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654 | 0.75 m | 2.46 ft | 74 | Plug to Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 53.79 | |
| 100 | $ 48.41 | |||
Description
General part information
PT-SAS-SL8 Series
74 Position SlimSAS SFF-8654 8i Plug to Plug 0.820' (250.00mm, 9.843") Black Shielded
