629-43W2250-1N2

Active

EDAC Inc.

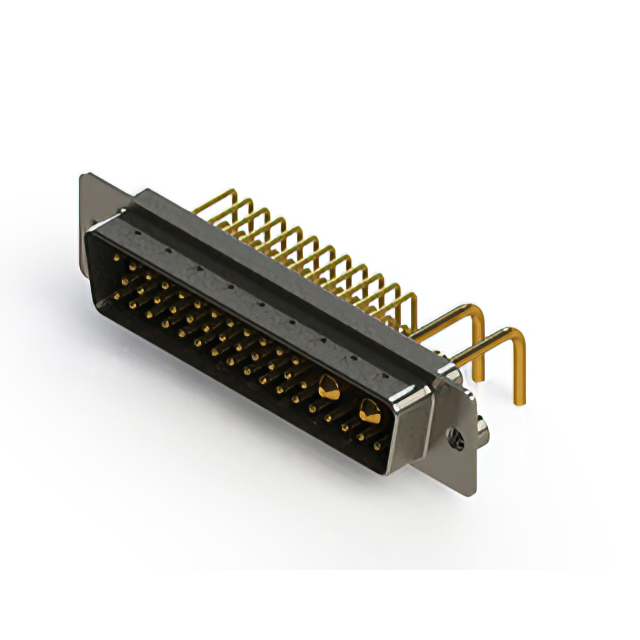

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DD-43W2, PLUG, 43 CONTACTS, 41 SIGNAL, 2 POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

629-43W2250-1N2

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DD-43W2, PLUG, 43 CONTACTS, 41 SIGNAL, 2 POWER

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-43W2250-1N2

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polyester Thermoplastic
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	2
Number of Positions [custom]	41
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5 (DD, D) - 43W2
Termination	Solder
Voltage Rating	125 VDC

629-43W Series

...

Part	Connector Style	Material Flammability Rating	Termination	Flange Feature	Current Rating (Amps)	Voltage Rating	Mounting Type	Color	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Contact Finish Thickness	Connector Type	Features	Number of Rows	Contact Finish	Shell Material, Finish	Shell Size, Connector Layout	Dielectric Material	Backset Spacing	Backset Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]
EDAC Inc. 629-43W2250-1NA	Combo D-Sub	UL94 V-0	Solder	Board Side (M3)	10A 5A	125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy	Flash	Male Pins Plug	Grounding Indents	3	Gold	Nickel Plated Steel	5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C
EDAC Inc. 629-43W2640-4N2	Combo D-Sub	UL94 V-0	Solder	Housing/Shell (4-40)		125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy		Male Pins Plug		3	Gold	Nickel Plated Steel	5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	5 A 40 A	0.76 Ám	30 Áin
EDAC Inc. 629-43W2640-2NA	Combo D-Sub	UL94 V-0	Solder	Board Side (M3)		125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy		Male Pins Plug	Grounding Indents	3	Gold	Nickel Plated Steel	5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	5 A 20 A	0.76 Ám	30 Áin
EDAC Inc. 629-43W2240-4TC	Combo D-Sub	UL94 V-0	Solder	Housing/Shell (M3)		125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy	Flash	Male Pins Plug	Grounding Indents Mounting Brackets	3	Gold		5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	5 A 40 A
EDAC Inc. 629-43W2250-1N2	Combo D-Sub	UL94 V-0	Solder	Housing/Shell (4-40)	10A 5A	125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy	Flash	Male Pins Plug		3	Gold	Nickel Plated Steel	5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C
EDAC Inc. 629-43W2640-2T2	Combo D-Sub	UL94 V-0	Solder	Housing/Shell (4-40)		125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy		Male Pins Plug		3	Gold		5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	5 A 20 A	0.76 Ám	30 Áin
EDAC Inc. 629-43W2240-7N6	Combo D-Sub	UL94 V-0	Solder	4-40		125 VDC	Through Hole Right Angle	Black	Coax Signal		41	Copper Alloy	Flash	Male Pins Plug	Board Lock Grounding Indents	3	Gold	Nickel Plated Steel	5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C				2
EDAC Inc. 629-43W2640-1TD	Combo D-Sub	UL94 V-0	Solder	M3	10A 5A	125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy		Male Pins Plug	Board Lock Grounding Indents Mounting Brackets	3	Gold		5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C		0.76 Ám	30 Áin
EDAC Inc. 629-43W2650-1TC	Combo D-Sub	UL94 V-0	Solder	Housing/Shell (M3)	10A 5A	125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy		Male Pins Plug	Grounding Indents Mounting Brackets	3	Gold		5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C		0.76 Ám	30 Áin
EDAC Inc. 629-43W2240-3NC	Combo D-Sub	UL94 V-0	Solder	Housing/Shell (M3)		125 VDC	Through Hole Right Angle	Black	Signal and Power	2	41	Copper Alloy	Flash	Male Pins Plug	Grounding Indents Mounting Brackets	3	Gold	Nickel Plated Steel	5 (DD D) - 43W2	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	5 A 30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 14.56
Newark	Each	1	$ 17.49
		250	$ 16.03
		500	$ 14.80
		1000	$ 14.25
		5000	$ 12.59

Description

General part information

629-43W Series

43 (41 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
