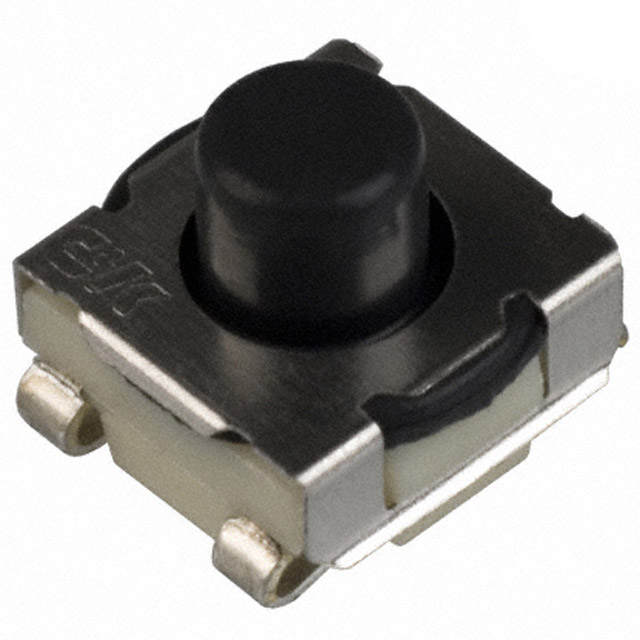

Specification	KT11B2JM34 LFS

Actuator Height off PCB (Vertical)	5.24 mm
Actuator Material	Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Power)	1 VA
Features	Sealed
Illumination	Non-Illuminated
Ingress Protection Description	Dust Protected, Waterproof
Ingress Protection IP Rating	IP57
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Surface Mount
Operating Force	300 gf
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Outline Length	6.38 mm
Outline Width	6.22 mm
Switch Function	Off-Mom
Termination Style	J Lead
Voltage Rating	32VAC, DC

KT11B2 Series

Part	Contact Rating (Power)	Voltage Rating	Outline Width	Outline Length	Mounting Type	Circuit	Ingress Protection Description	Ingress Protection IP Rating	Termination Style	Actuator Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Illumination	Features	Switch Function	Actuator Height off PCB (Vertical)	Actuator Type	Operating Force	Mechanical Life (Cycles)	Actuator Material

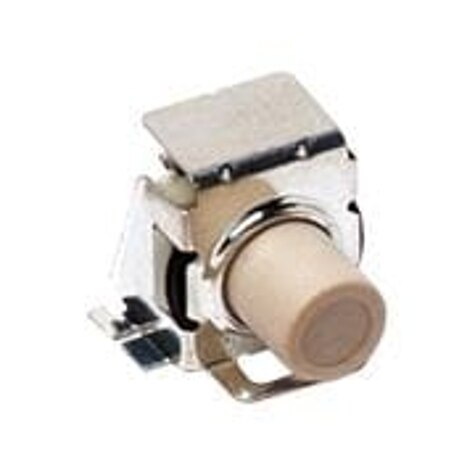

LITTELFUSE KT11B0JM34LFS	1 VA	32VAC DC	6.22 mm	6.38 mm	Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	J Lead	Top Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom	3 mm	Flush	300 gf
LITTELFUSE KT11P2SA3M35LFG	1 VA	32VAC DC	4.61 mm	7.77 mm	Right Angle Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	Gull Wing	Side Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom		Standard	300 gf	100000 Cycles	Nylon Polyamide (PA)
LITTELFUSE KT11S2SA2M35LFG	1 VA	32VAC DC	6.41 mm	7.77 mm	Right Angle Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	Gull Wing	Side Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom		Plunger for Cap	300 gf	100000 Cycles
LITTELFUSE KT11P3SA1M34LFS	1 VA	32VAC DC	4.38 mm	7.77 mm	Right Angle Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	Gull Wing	Side Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom		Standard	300 gf	100000 Cycles	Nylon Polyamide (PA)
LITTELFUSE KT11P2JM34LFS	1 VA	32VAC DC	6.22 mm	6.38 mm	Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	J Lead	Top Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom	5.36 mm	Standard	300 gf
LITTELFUSE KT11S1SA2M35LFG
LITTELFUSE KT11B1SM34LFS	1 VA	32VAC DC	6.22 mm	6.38 mm	Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	Gull Wing	Top Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom	3.64 mm	Standard	300 gf
LITTELFUSE KT11S2SA2M34LFS	1 VA	32VAC DC	6.41 mm	7.77 mm	Right Angle Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	Gull Wing	Side Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom		Plunger for Cap	300 gf	100000 Cycles
LITTELFUSE KT11B0SAM34LFS	1 VA	32VAC DC	4.38 mm	7.57 mm	Right Angle Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	Gull Wing	Side Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom		Flush	300 gf
LITTELFUSE KT11B2JM34LFS	1 VA	32VAC DC	6.22 mm	6.38 mm	Surface Mount	SPST-NO	Dust Protected Waterproof	IP57	J Lead	Top Actuated	90 °C	-40 °C	Non-Illuminated	Sealed	Off-Mom	5.24 mm	Standard	300 gf
