SL1215-220K2R8-PF
ObsoleteTDK Corporation
FIXED IND 22UH 2.8A 31 MOHM TH
SL1215-220K2R8-PF
ObsoleteTDK Corporation
FIXED IND 22UH 2.8A 31 MOHM TH
Description
General part information
SL1215-220K2R8-PF

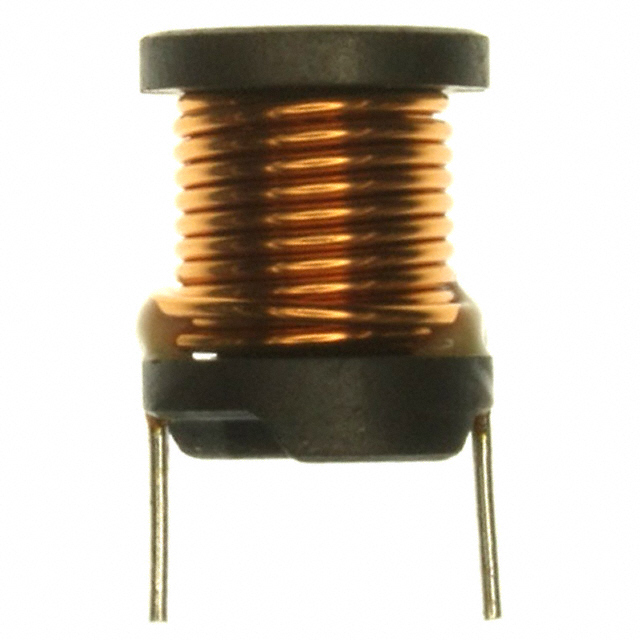

22 µH Unshielded Wirewound Inductor 2.8 A 31mOhm Max Radial, Vertical Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | SL1215-220K2R8-PF |
|---|---|
| Current - Saturation (Isat) | 7.2 A |
| Current Rating | 2.8 A |
| DC Resistance (DCR) (Max) | 31 mOhm |
| Height - Seated (Max) | 0.591 in |
| Inductance | 22 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical Cylinder (Open), Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.472 in |
| Tolerance | 10 % |
| Type | Wirewound |
