NWE32DHRN-T9410

Obsolete

Sullins Connector Solutions

CONN PCI EXP FMALE 64POS 0.039

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN PCI EXP FMALE 64POS 0.039

Technical Specifications

Parameters and characteristics for this part

Specification	NWE32DHRN-T9410

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Type	Cantilever
Features	Locking Ramp, Board Guide, Card Extender
Gender	Female
Material - Insulation	Polyamide (PA46), Nylon 4/6
Mounting Type	Board Edge, Straddle Mount
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

Part	Contact Material	Termination	Read Out	Contact Finish Thickness	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Gender	Card Thickness	Card Thickness	Card Type	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Material - Insulation	Number of Positions/Bay/Row [custom]	Contact Type	Features	Number of Positions
Sullins Connector Solutions NWE32DHRN-T9410	Phosphor Bronze	Solder	Dual	Flash	Black	105 ░C	-55 °C	Board Edge Straddle Mount	Female	0.062 in	1.57 mm	PCI Express™	0.039 in	1 mm	Gold	2	Nylon 4/6 Polyamide (PA46)	32	Cantilever	Board Guide Card Extender Locking Ramp	64
Sullins Connector Solutions NWE32DHHN-T911	Phosphor Bronze	Solder Staggered	Dual	Flash	Black	85 °C	-55 °C	Through Hole	Female	0.062 in	1.57 mm	PCI Express™	0.039 in	1 mm	Gold	2	Nylon 4/6 Polyamide (PA46)	32	Cantilever	Board Guide Locking Ramp	64

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

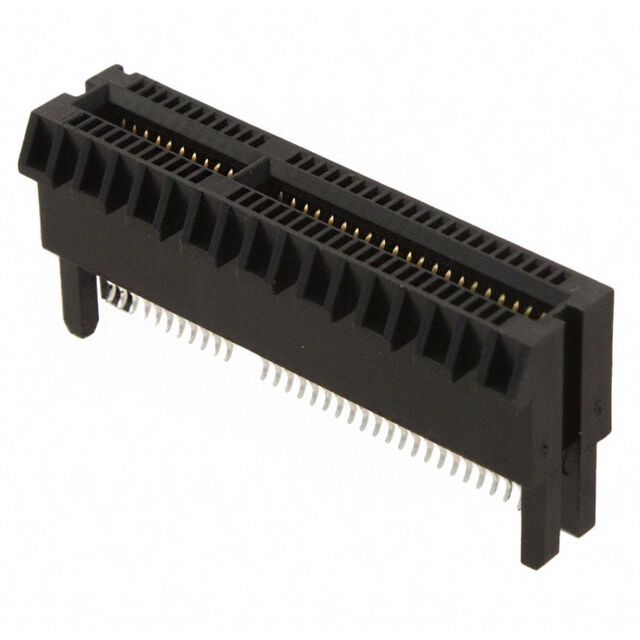

64 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
