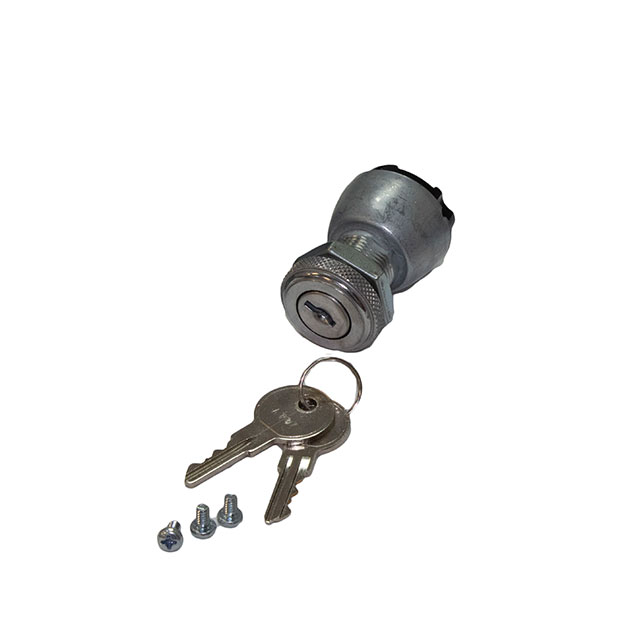

HDI3-3B-1-B

Active

Switch Components

SWITCH KEYLOCK 3POS SPDT 10A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH KEYLOCK 3POS SPDT 10A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	HDI3-3B-1-B

Actuator Type	Flat Key
Circuit	SPDT
Contact Material	Bronze
Contact Timing	Not Specified
Current Rating (Amps)	10 A
Key Removable Positions	2
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-Off-On
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

SWITCH KEYLOCK 3POS SPDT 10A 12V

Part	Circuit	Contact Timing	Actuator Type	Key Removable Positions	Contact Material	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Termination Style
Switch Components HDI3-3B-1-B	SPDT	Not Specified	Flat Key	2	Bronze	10 A	12 V	On-Off-On	19 mm	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.42

General part information

Keylock Switch 3 Position SPDT 10A (DC) AC 12 VDC Panel Mount
