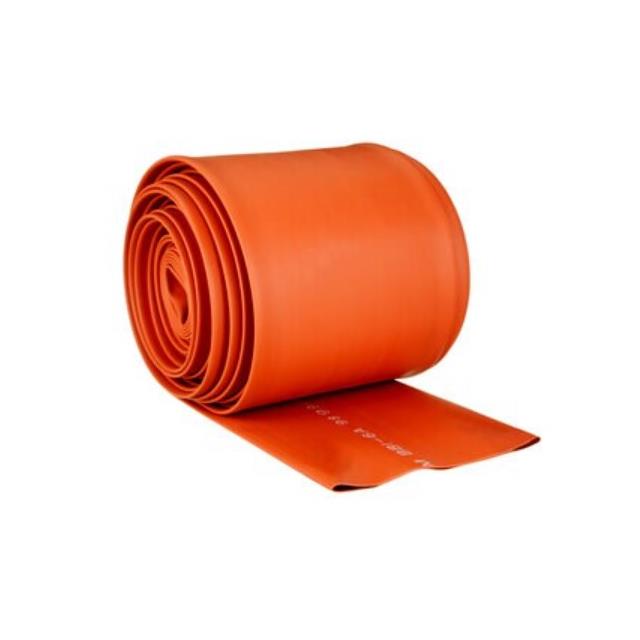

BBI-10A-50'

Active

3M (TC)

HEATSHRINK 10.28" ORANGE RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog BBI-A Tubing Spec/Ordering +1

BBI-10A-50'

Active

3M (TC)

HEATSHRINK 10.28" ORANGE RED

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog BBI-A Tubing Spec/Ordering +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BBI-10A-50'

Color	Orange-Red
Inner Diameter - Recovered [diameter]	115.1 mm
Inner Diameter - Recovered [diameter]	4.53 in
Inner Diameter - Supplied [diameter]	261.11 mm
Inner Diameter - Supplied [diameter]	10.28 "
Length	15.2 m
Length	50 ft
Material	Polyolefin (PO)
Recovered Wall Thickness	0.138 in
Recovered Wall Thickness	3.51 mm
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	120 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Bus Bar

BBI Series

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Type	Shrinkage Ratio	Shelf Life Start	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Material	Shrink Temperature	Length	Length	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]
3M (TC) BBI-4A-50'	42.42 mm	1.67 "	0.113 "	2.87 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	110.49 mm	4.35 in	Orange-Red	Polyolefin (PO)	120 °C	15.2 m	50 ft	27 °C 80 °F	10 °C
3M (TC) BBI-6A-50'	59.18 mm	2.33 in	0.117 in	2.97 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	149.86 mm	5.9 in	Orange-Red	Polyolefin (PO)	120 °C	15.2 m	50 ft	27 °C 80 °F	10 °C
3M (TC) BBI-3A-20'	25.65 mm	1.01 in	0.113 "	2.87 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	60.45 mm	2.38 in	Orange-Red	Polyolefin (PO)	120 °C	6.1 m	20 ft	27 °C 80 °F	10 °C
3M (TC) BBI-10A-20'	115.1 mm	4.53 in	0.138 in	3.51 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	261.11 mm	10.28 "	Orange-Red	Polyolefin (PO)	120 °C	6.1 m	20 ft	27 °C 80 °F	10 °C
3M (TC) BBI-5A-20'	51.82 mm	2.04 in	0.114 "	2.9 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	134.62 mm	5.3 in	Orange-Red	Polyolefin (PO)	120 °C	6.1 m	20 ft	27 °C 80 °F	10 °C
3M (TC) BBI-4A-20'	42.42 mm	1.67 "	0.113 "	2.87 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	110.49 mm	4.35 in	Orange-Red	Polyolefin (PO)	120 °C	6.1 m	20 ft	27 °C 80 °F	10 °C
3M (TC) BBI-10A-50'	115.1 mm	4.53 in	0.138 in	3.51 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	261.11 mm	10.28 "	Orange-Red	Polyolefin (PO)	120 °C	15.2 m	50 ft	27 °C 80 °F	10 °C
3M (TC) BBI-3A-50'	25.65 mm	1.01 in	0.113 "	2.87 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	60.45 mm	2.38 in	Orange-Red	Polyolefin (PO)	120 °C	15.2 m	50 ft	27 °C 80 °F	10 °C
3M (TC) BBI-7A-20'	64.77 mm	2.55 in	0.13 in	3.3 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	172.21 mm	6.78 in	Orange-Red	Polyolefin (PO)	120 °C	6.1 m	20 ft	27 °C 80 °F	10 °C
3M (TC) BBI-8A-50'	80.77 mm	3.18 in	0.128 in	3.25 mm	120 Months	Bus Bar Tubing	2 to 1	Date of Manufacture	209.55 mm	8.25 in	Orange-Red	Polyolefin (PO)	120 °C	15.2 m	50 ft	27 °C 80 °F	10 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 80.01

Description

General part information

BBI Series

Heat Shrink Tubing, Bus Bar 10.280" (261.11mm) 2 to 1 Orange-Red 50.0' (15.2m)

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet

BBI-A Tubing Spec/Ordering

Datasheet
