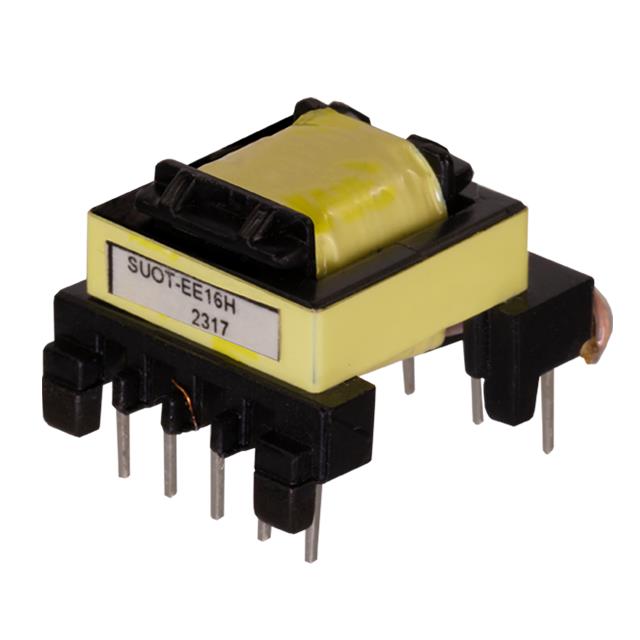

SUOT-EE16H-24
ActiveSignal Transformer
UNIVERSAL OFFLINE TRANSFORMER
SUOT-EE16H-24
ActiveSignal Transformer
UNIVERSAL OFFLINE TRANSFORMER
Description
General part information
SUOT-EE16H-24
LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 4000V Isolation 132kHz Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | SUOT-EE16H-24 |
|---|---|
| Applications | LED Drivers, AC/DC SMPS |
| Frequency | 132 kHz |
| Height - Seated (Max) | 16.51 mm |
| Inductance | 900 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.965 in |
| Size / Dimension Width | 0.795 in |
| Style | Wirewound |
| Type | For AC/DC Converters |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary (Max) | 375 V |
| Voltage - Primary (Min) | 125 V |
