FMCA2329-50CM
ActiveFairview Microwave
CBL ASSY 1.0/2.3PLUG-1.0/2.3PLUG
FMCA2329-50CM
ActiveFairview Microwave
CBL ASSY 1.0/2.3PLUG-1.0/2.3PLUG
Description
General part information
FMCA2329-50CM

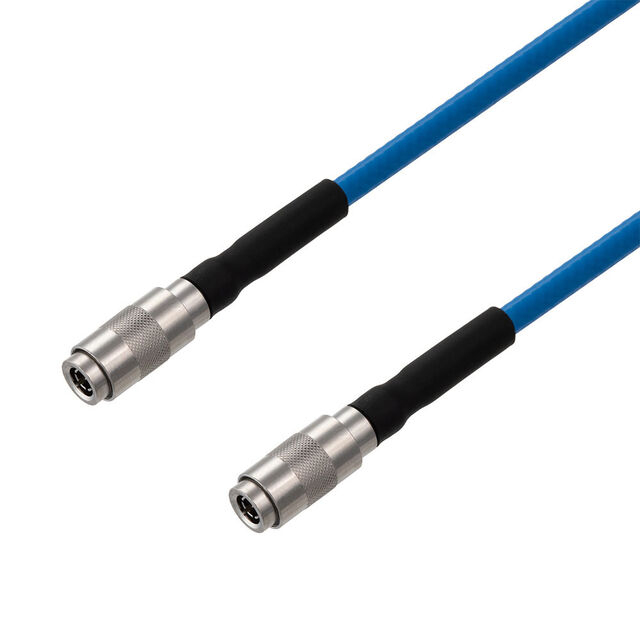

Cable Assembly Coaxial 1.0/2.3 to 1.0/2.3 TFT-402LF 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2329-50CM |
|---|---|
| 1st Connector | 1.0/2.3 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 1 mm |
| 1st Connector Dimension (2) | 2.3 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 1 mm, 1 |
| 1st Connector Size (Dimension 2) | 2.3 mm, 2.3 |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | 1.0/2.3 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 402LF, TFT |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 19.69 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 1.0/2.3 to 1.0/2.3 |
