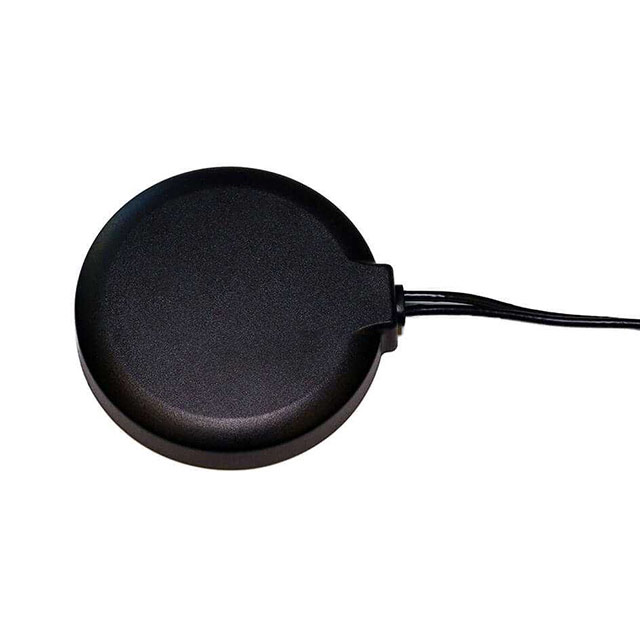

AEACBD081016-C2LG
RF ANTENNA 2G, 3G, 4G, GSM, GPS, GNSS, LTE Dome SMA Male Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | AEACBD081016-C2LG |
|---|---|
| Antenna Type | Dome |
| Applications | GNSS, 2G, 4G, 3G, GPS, GSM, LTE |
| Features | 3m, Cable, LNA |
| Frequency (Center/Band) | 2.2GHz, 829MHz, 1.575GHz |
| Frequency (Center/Band) - 1 | 829 MHz |
| Frequency (Center/Band) - 2 | 1.575 GHz |
| Frequency (Center/Band) - 3 | 2.2 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 1.578 GHz |
| Frequency Range (Band 2) Minimum | 1.572 GHz |
| Frequency Range (Band 3) Maximum | 2.69 GHz |
| Frequency Range (Band 3) Minimum | 1.71 GHz |
| Gain | 2.5 dBi, 2 dBi |
| Height (Max) | 0.638 in |
| Ingress Protection | IP67 |
| Mounting Type | Magnetic |
| Number of Bands | 3 |
| RF Family/Standard | Navigation, Cellular |
| Termination Type | SMA Male |
| VSWR | 3, 2 |
| VSWR Maximum | 3 |
| VSWR Minimum | 2 |
