Description
General part information
1350013

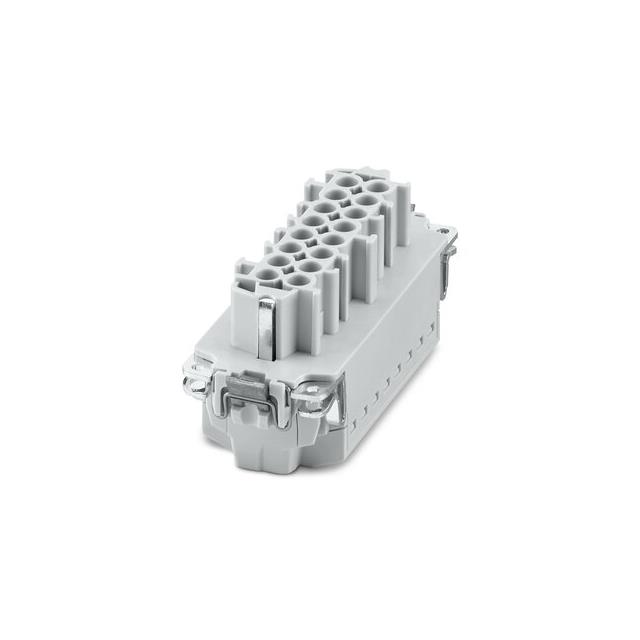

Female Insert 16+2+Ground Position Push In
Technical Specifications
Parameters and characteristics for this part
| Specification | 1350013 |
|---|---|
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 13 A |
| Gender | Female |
| Housing Material | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | Ground, 16, 2 |
| Number of Positions | 16 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | 2+Ground |
| Size | B16 |
| Termination Style | Push In |
| Voltage Rating | 600 V |
