1605640
ActivePhoenix Contact
INSERT MALE 24POS IDC
1605640
ActivePhoenix Contact
INSERT MALE 24POS IDC
Description
General part information
1605640

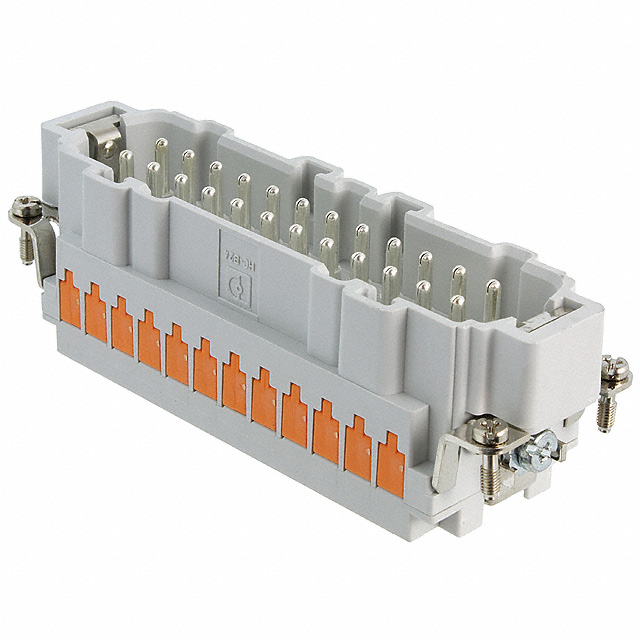

Male Insert 24 Position IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1605640 |
|---|---|
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 10 A |
| Gender | Male |
| Housing Material | Nylon, Polyamide, PA |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 24 pos |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B24 |
| Termination Style | IDC |
| Voltage Rating | 600 V |
