B32776G5456K000

Active

EPCOS - TDK Electronics

CAP FILM 45UF 575VDC RAD 4 LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B32776G5456K000

Active

EPCOS - TDK Electronics

CAP FILM 45UF 575VDC RAD 4 LEAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.36
		10	$ 11.44
		50	$ 9.89
		100	$ 8.90
		500	$ 8.59

Description

General part information

B32776G Series

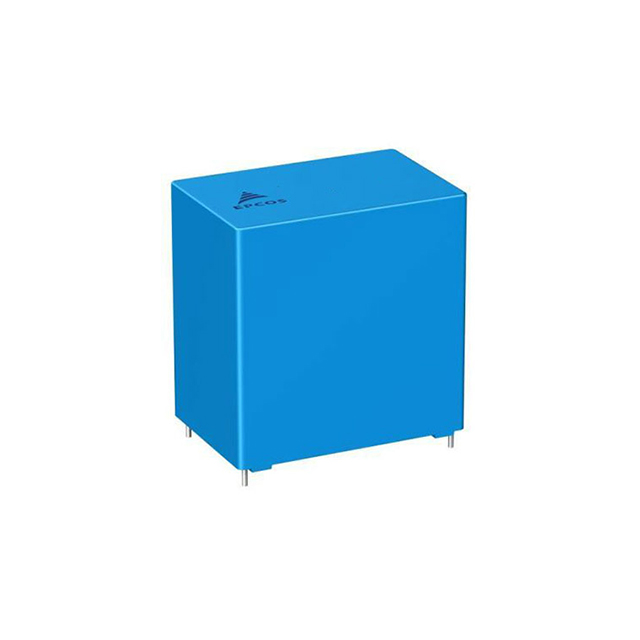

45 µF Film Capacitor 575V Polypropylene (PP), Metallized Radial - 4 Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B32776G5456K000	B32776G Series

Applications	DC Link, DC Filtering	DC Link, DC Filtering
Capacitance	45 µF	8 - 50 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4 mOhms	4 - 12.1 mOhms
Features	Long Life	Long Life
Height - Seated (Max) [Max] [z]	1.772 in	1.457 - 1.89 in
Height - Seated (Max) [Max] [z]	45 mm	37 - 48 mm
Lead Spacing	37.5 mm	37.5 mm
Lead Spacing	1.476 in	1.476 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial - 4 Leads	Radial - 4 Leads
Size / Dimension	-	42 mm
Size / Dimension	-	33 mm
Size / Dimension [x]	42 mm	1.654 - 42 mm
Size / Dimension [x]	1.654 in	1.654 in
Size / Dimension [y]	1.181 in	0.787 - 1.181 in
Size / Dimension [y]	30 mm	1.299 - 30 mm
Termination	PC Pins	PC Pins
Tolerance	10 %	5 - 10 %
Voltage Rating - DC	575 V	450 - 1300 V
Voltage Rating - DC	-	1.1 - 1.3 kV

B32776G Series

CAP FILM 14UF 1.1KVDC RAD 4 LEAD

Part	Applications	Dielectric Material	Termination	Mounting Type	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Tolerance	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
EPCOS - TDK Electronics B32776G0146K000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	1100 V	1.1 kV	37 mm	1.457 in	14 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	10 %	37.5 mm	1.476 in	8.7 mOhms	42 mm	28 mm	1.654 in	1.102 in
EPCOS - TDK Electronics B32776G8306J000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	800 V		45 mm	1.772 in	30 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	5 %	37.5 mm	1.476 in	5.1 mOhm	42 mm	30 mm	1.654 in	1.181 in
EPCOS - TDK Electronics B32776G1805J000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	1300 V	1.3 kV	39.5 mm	1.555 "	8 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	5 %	37.5 mm	1.476 in	12.1 mOhms	42 mm	20 mm	1.654 in	0.787 in
EPCOS - TDK Electronics B32776G8306K000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	800 V		45 mm	1.772 in	30 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	10 %	37.5 mm	1.476 in	5.1 mOhm	42 mm	30 mm	1.654 in	1.181 in
EPCOS - TDK Electronics B32776G0106K000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	1100 V	1.1 kV			10 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	10 %	37.5 mm	1.476 in
EPCOS - TDK Electronics B32776G4406K000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	450 V		37 mm	1.457 in	40 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	10 %	37.5 mm	1.476 in	5.3 mOhms	42 mm	28 mm	1.654 in	1.102 in
EPCOS - TDK Electronics B32776G8206J000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	800 V		37 mm	1.457 in	20 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	5 %	37.5 mm	1.476 in	7.5 mOhm	42 mm	28 mm	1.654 in	1.102 in
EPCOS - TDK Electronics B32776G0206J000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	1100 V	1.1 kV	45 mm	1.772 in	20 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	5 %	37.5 mm	1.476 in	6 mOhms	42 mm	30 mm	1.654 in	1.181 in
EPCOS - TDK Electronics B32776G0146J000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	1100 V	1.1 kV	37 mm	1.457 in	14 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	5 %	37.5 mm	1.476 in	8.7 mOhms	42 mm	28 mm	1.654 in	1.102 in
EPCOS - TDK Electronics B32776G9256J000	DC Filtering, DC Link	Metallized, Polypropylene (PP)	PC Pins	Through Hole	900 VDC		45 mm	1.772 in	25 µF	Radial - 4 Leads	-40 °C	105 ░C	Long Life	5 %	37.5 mm	1.476 in	5.5 mOhms	42 mm	30 mm	1.654 in	1.181 in
