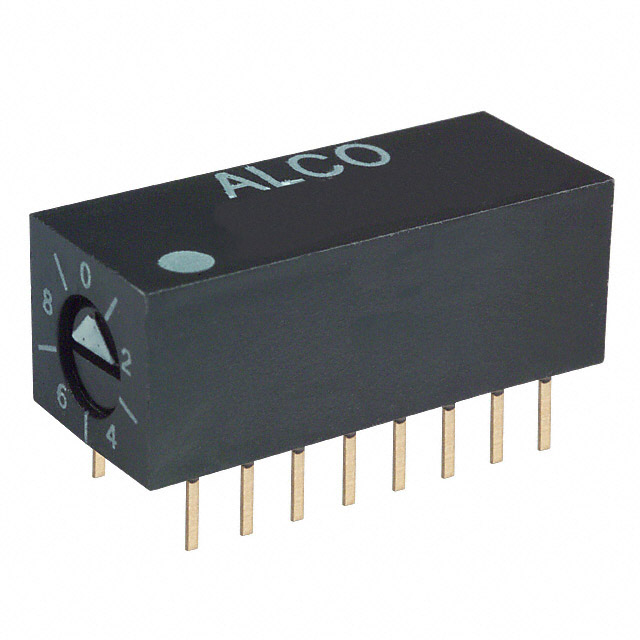

53919-2
ObsoleteTE Connectivity AMP Connectors
SW ROTARY DIP BCD W/COMP 28V
53919-2
ObsoleteTE Connectivity AMP Connectors
SW ROTARY DIP BCD W/COMP 28V
Description
General part information
53919-2
Dip Switch BCD with Complement 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 28VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 53919-2 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Glass Filled, Polyester, PET |
| Circuit | BCD with Complement |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Current Rating | 100 mA |
| Features | Sealed |
| Height Above Board | 0.385 in |
| Length | 0.9 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | PC Pin |
| Voltage Rating | 28 V |
| Washable | No |
