100429NP

Active

LAPP

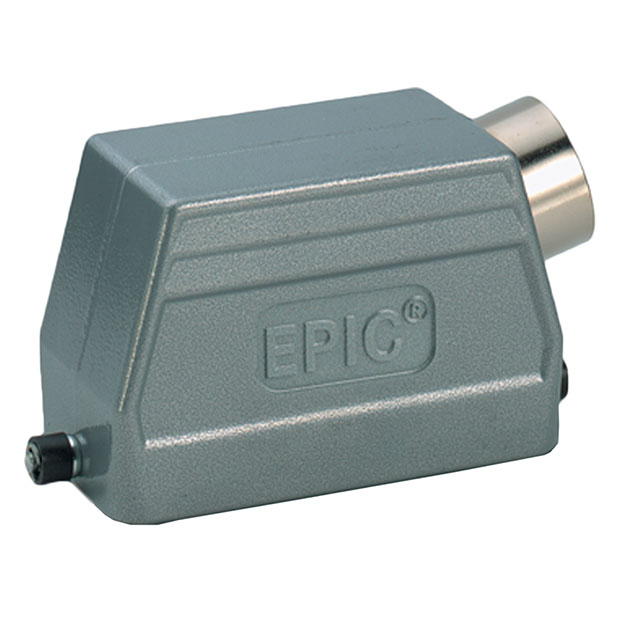

CONN HOOD HB10 SE 1/2NPT

Search across all available documentation for this part.

Active

LAPP

CONN HOOD HB10 SE 1/2NPT

Technical Specifications

Parameters and characteristics for this part

Specification	100429NP

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB10
Size / Dimension [x]	73 mm
Size / Dimension [x]	2.874 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.047 in
Size / Dimension [z]	52 mm
Style	Side Entry
Thread Size	NPT-1/2

CONN HOOD HB10 SE 1/2NPT

Part	Size	Housing Finish	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ingress Protection	Style	Thread Size	Connector Type	Housing Color	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material
LAPP 100429NP	HB10	Powder Coated	43 mm	2.047 in	52 mm	73 mm	2.874 in	1.693 in	IP65 - Dust Tight, Water Resistant	Side Entry	NPT-1/2	Hood	Gray	Locking Clip (1) on Base Bottom	125 °C	-40 °C	Aluminum Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry NPT-1/2 HB10 IP65 - Dust Tight, Water Resistant
