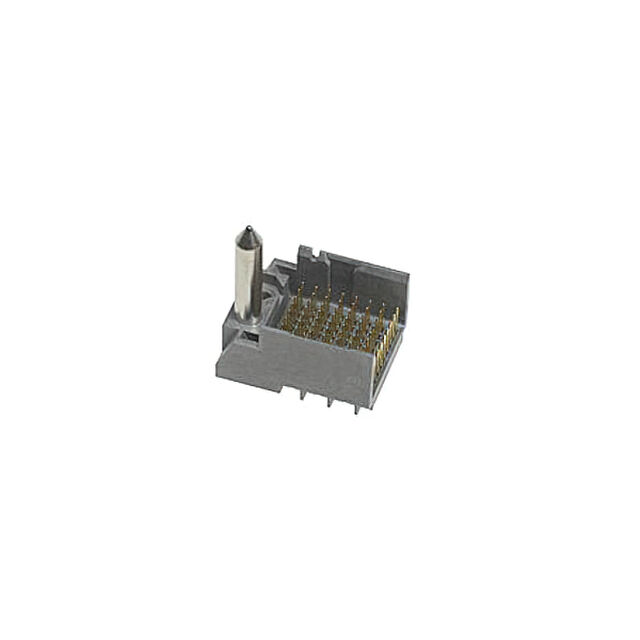

IMPACT 85 OHM PLUS 3 PAIR VERTICAL BACKPLANE HEADER, LEFT GUIDE, OPEN ENDWALL, 8 COLUMNS, 72 CIRCUITS, PIN LENGTH 4.90MM, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD FREE

Find alt

Alpha

1705253807

Active

Molex

IMPACT 85 OHM PLUS 3 PAIR VERTICAL BACKPLANE HEADER, LEFT GUIDE, OPEN ENDWALL, 8 COLUMNS, 72 CIRCUITS, PIN LENGTH 4.90MM, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD FREE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

170525 Series

High Speed / Modular Connectors Impact BP 3x10 85-ohm Left Endwall Sn

Technical Specifications

Parameters and characteristics for this part

Specification	1705253807

Color	Gray
Connector Style	Guide Left, Impact
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	24
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	8
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Termination	Press-Fit
Voltage Rating	30 V

170525 Series

High Speed / Modular Connectors Impact BP 3x10 85-ohm Left Endwall Sn

Part	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Number of Rows	Differential Pairs (Typical)	Contact Finish Thickness	Color	Connector Style	Connector Type	Termination	Contact Finish	Mounting Type	Number of Positions	Number of Columns	Number of Positions Loaded
Molex 1705253207	UL94 V-0	-55 °C	85 °C	30 V	9	36	30 µin	Gray	Guide Left Impact	Header Male Pins	Press-Fit	Gold	Through Hole	108	12	All
Molex 1705255807					9	24	30 µin	Gray	Guide Right Impact	Header Male Pins	Press-Fit	Gold	Through Hole	72	8	All
Molex 1705255607					9	48	30 µin	Gray	Guide Right Impact	Header Male Pins	Press-Fit	Gold	Through Hole	144	16	All
Molex 1705255207	UL94 V-0	-55 °C	85 °C	30 V	9	36	30 µin	Gray	Guide Right Impact	Header Male Pins	Press-Fit	Gold	Through Hole	108	12	All
Molex 1705251628						48	30 µin			Header Male Pins	Press-Fit	Gold	Through Hole		16	All
Molex 1705255608	UL94 V-0	-55 °C	85 °C	30 V	9	48	30 µin	Gray	Guide Right Impact	Header Male Pins	Press-Fit	Gold	Through Hole	144	16	All
Molex 1705251815	UL94 V-0	-55 °C	85 °C	30 V	9	24	30 µin	Gray	Impact	Header Male Pins	Press-Fit	Gold	Through Hole	72	8	All
Molex 1705251817	UL94 V-0	-55 °C	85 °C	30 V	9	24	30 µin	Gray	Impact	Header Male Pins	Press-Fit	Gold	Through Hole	72	8	All
Molex 1705251807					9	24	30 µin	Gray	Impact	Header Male Pins	Press-Fit	Gold	Through Hole	72	8	All
Molex 1705251118	UL94 V-0	-55 °C	85 °C	30 V	9	30	30 µin	Gray	Impact	Header Male Pins	Press-Fit	Gold	Through Hole	90	10	All
