PF0580.223NLT
ActivePulse Electronics
FIXED IND 22UH 750MA 280MOHM SMD
PF0580.223NLT
ActivePulse Electronics
FIXED IND 22UH 750MA 280MOHM SMD
Description
General part information
PF0580.223NLT

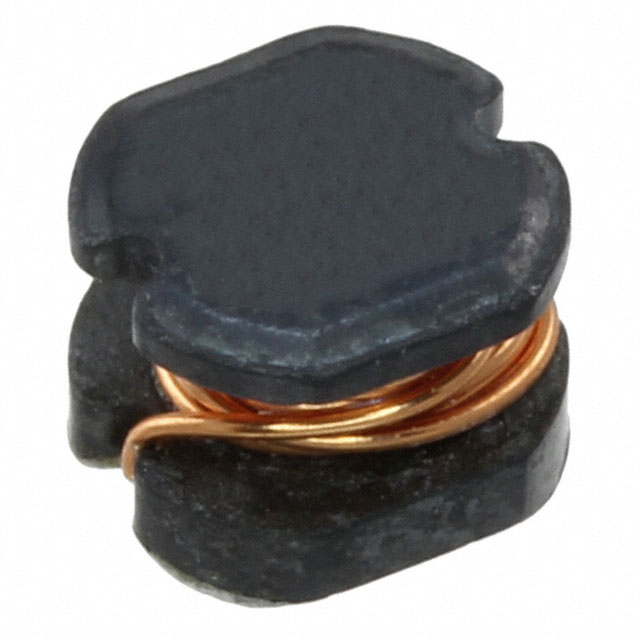

22 µH Unshielded Wirewound Inductor 750 mA 280mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PF0580.223NLT |
|---|---|
| Current - Saturation (Isat) | 0.75 mA |
| Current Rating | 0.75 A |
| DC Resistance (DCR) (Max) | 280 mOhm |
| Height - Seated (Max) | 0.137 in |
| Inductance | 22 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.185 in |
| Size / Dimension Width | 0.165 in |
| Tolerance | 15 % |
| Type | Wirewound |
