Description
General part information

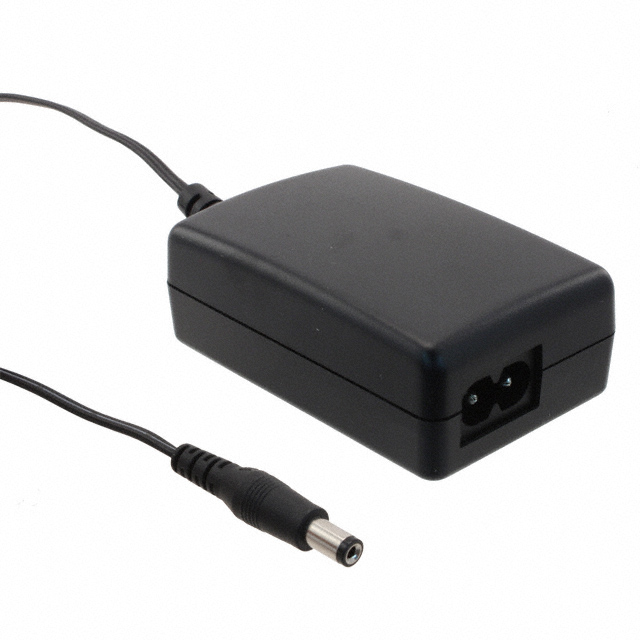

ETSA120100UD-P5P-SZ
12V 12 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ETSA120100UD-P5P-SZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | GS, PSE, cULus |
| Current - Output (Max) | 1 A |
| Efficiency | Level V |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord (Sold Separately) |
| No Load Power Consumption (Max) | 300 mW |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.1 mm |
| Output Connector Length | 9.5 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 12 W |
| Region Utilized | International |
| Size / Dimension Height | 1.07 in |
| Size / Dimension Length | 2.95 in |
| Size / Dimension Width | 1.87 in |
| Standard Number | 60950-1 |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 12 V |
