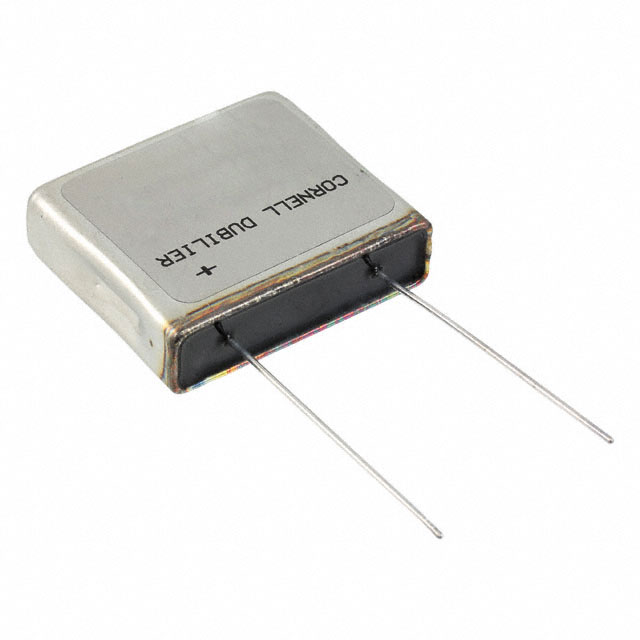

Specification	MLS221M250EK0C

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	597 mOhm
Height - Seated (Max)	12.7 mm
Lead Spacing	1 in
Lifetime	10000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	FlatPack
Polarization	Polar
Ripple Current	4.1 A, 5.1 A
Size / Dimension Length	1.5 in
Size / Dimension Width	1.75 in
Tolerance	20 %
Voltage - Rated	250 V
