678D108M6R3DG5O
ActiveVishay Dale

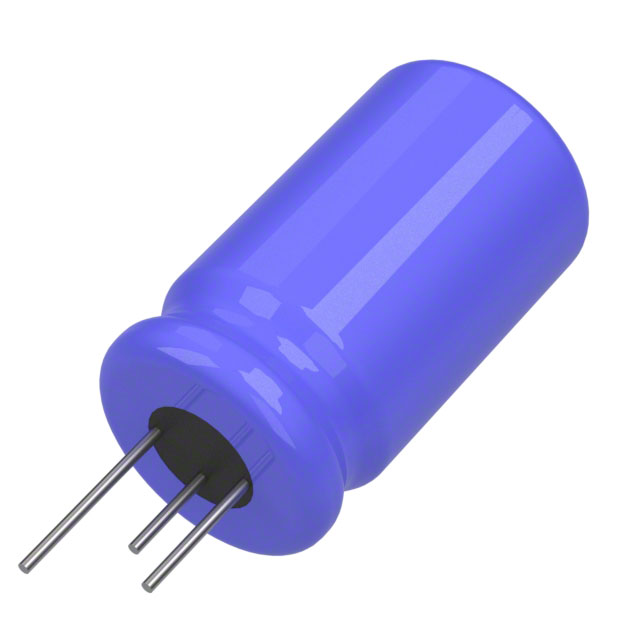

CAP ALUM 1000UF 20% 6.3V RADIAL
678D108M6R3DG5O
ActiveVishay Dale
CAP ALUM 1000UF 20% 6.3V RADIAL
Description
General part information
678D108M6R3DG5O
1000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 200mOhm @ 20Hz
Technical Specifications
Parameters and characteristics for this part
| Specification | 678D108M6R3DG5O |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 200 mOhm |
| Height - Seated (Max) | 0.906 in |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 581 mA, 830 mA |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
