533270-8
ActiveTE Connectivity AMP Connectors

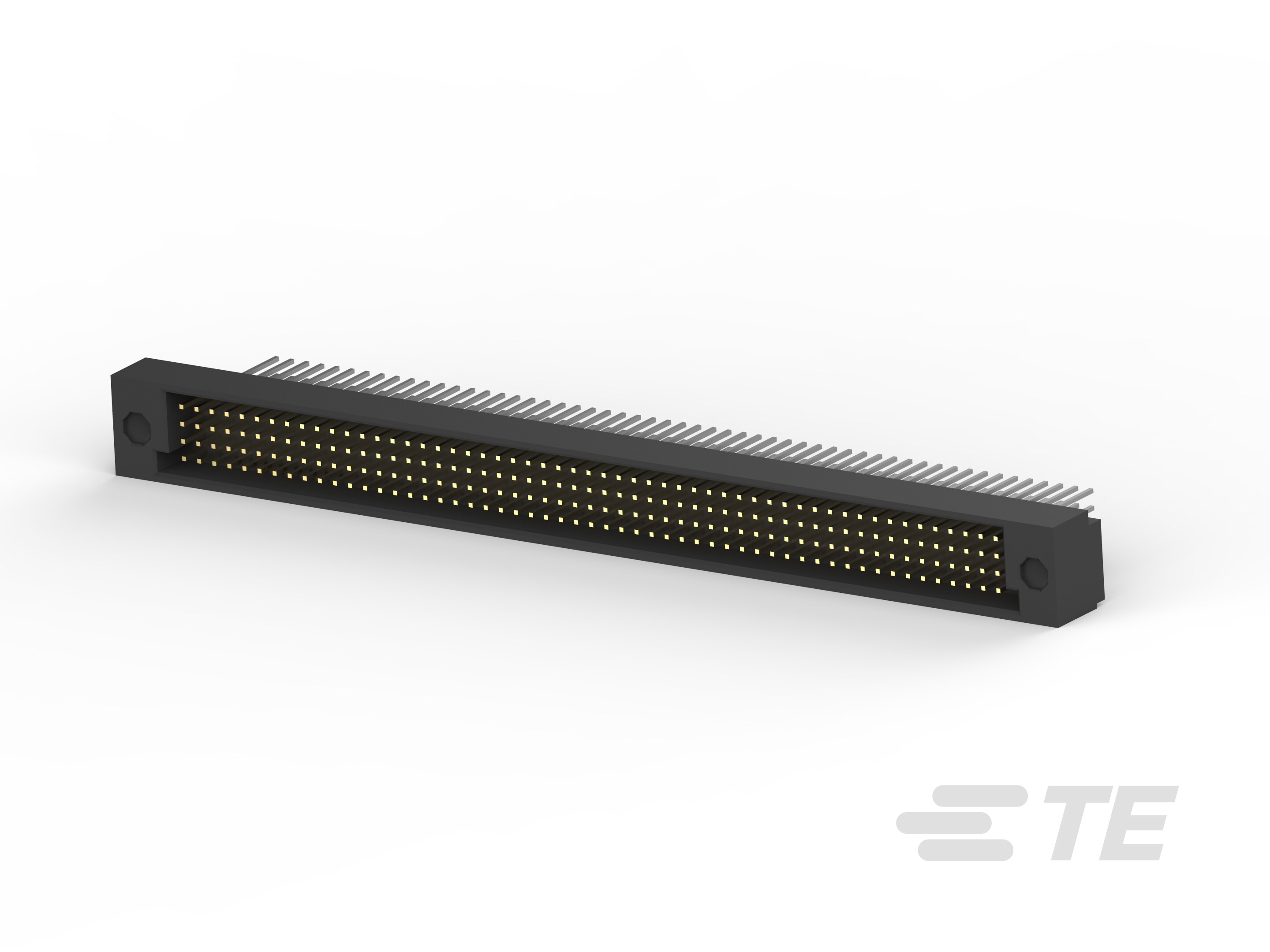

HDI PIN ASSY 4 ROW 220 POS
533270-8
ActiveTE Connectivity AMP Connectors
HDI PIN ASSY 4 ROW 220 POS
Description
General part information
533270-8
PCB Mount Header, Vertical, Board-to-Board, 220 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Gold (Au), Through Hole - Press-Fit, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 533270-8 |
|---|---|
| Color | Black |
| Connector Style | High Density (HDC, HDI, HPC) |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Mating Guide |
| Mounting Type | Through Hole |
| Number of Positions | 220 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Pitch | 0.1 in |
| Termination | Press-Fit |
