BT512310
ActiveBolton Technical
COAX CBL N-TYPE TO QMA 3.3'
BT512310
ActiveBolton Technical
COAX CBL N-TYPE TO QMA 3.3'
Description
General part information
BT512310

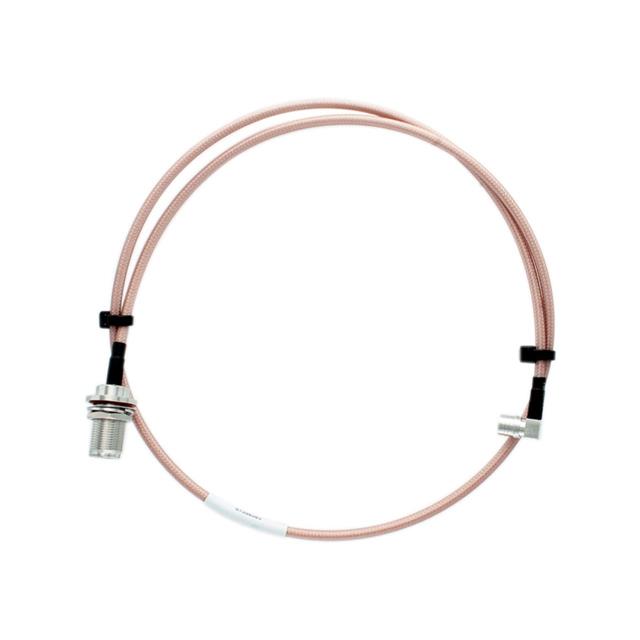

Cable Assembly Coaxial N-Type to QMA 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | BT512310 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | QMA Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Color | White |
| Connector Impedance | 50 Ohms |
| Features | Low Loss Shielded |
| Length | 39.4 in |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type, QMA |
