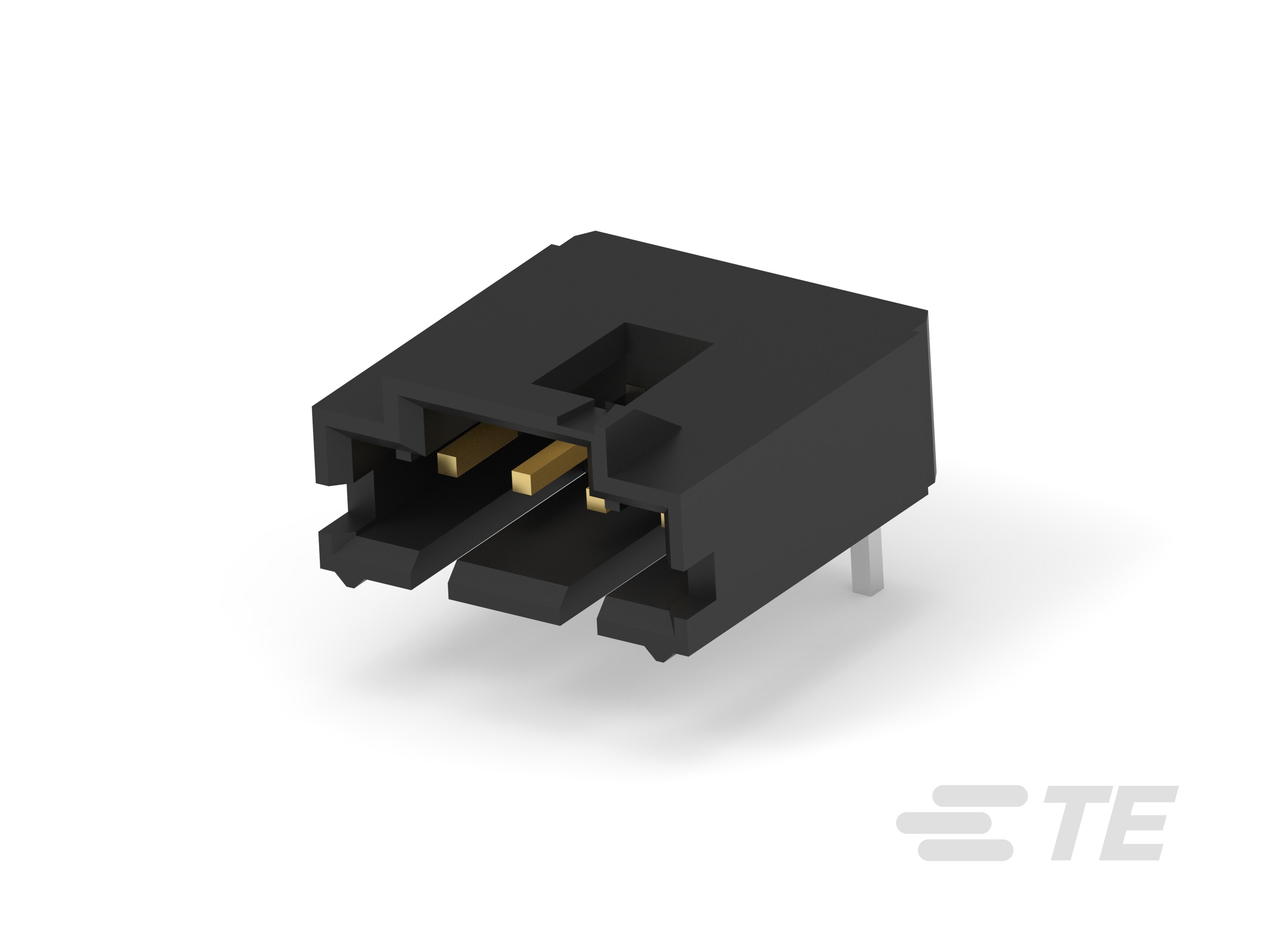

Specification	103906-3

Applications	Medical, Automotive, Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Mating	0.23 in
Contact Length - Post	0.13 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.2 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

AMPMODU MTE Series

...

Part	Number of Rows	Color	Number of Positions	Connector Type	Pitch	Operating Temperature (Max)	Operating Temperature (Min)	Contact Termination	Contact Type	Mounting Type	Insulation Material	Fastening Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Cable Termination	Wire Type	Contact Finish Thickness	Shrouding	Features	Material Flammability Rating	Style	Contact Length - Mating	Pitch - Mating	Termination	Contact Finish - Mating	Insulation Height	Current Rating	Contact Material	Contact Length - Post	Number of Positions Loaded	Contact Shape	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Applications	Overall Contact Length	Pin or Socket
TE Connectivity AMP Connectors 103653-3	1	Black	4	Plug	0.1 in	105 °C	-65 °C	Crimp	Male Pin	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Latch Holder
TE Connectivity AMP Connectors 104922-4	1	Black	5	Receptacle	0.1 in				Female Socket	Free Hanging (In-Line)		Latch Lock	26 AWG	22 AWG	Tin	Crimp	Discrete	100 µin
TE Connectivity AMP Connectors 5-103635-4	1		5	Header		105 °C	-65 °C		Male Pin	Right Angle Through Hole	Thermoplastic	Latch Holder							Shrouded - 4 Wall	Keying Slot	UL94 V-0	Board Board or Cable	0.23 in	0.1 in	Solder	Gold	0.2 in	3 A	Brass	0.13 in	All	Square	Black	Tin	15 µin	100 Ąin	Automotive General Purpose Medical Telecommunications
TE Connectivity AMP Connectors 103906-9	1		10	Header		105 °C	-65 °C		Male Pin	Right Angle Through Hole	Thermoplastic	Latch Holder							Shrouded - 4 Wall	Keying Slot	UL94 V-0	Board Board or Cable	0.23 in	0.1 in	Solder	Gold	0.2 in	3 A	Brass	0.13 in	All	Square	Black	Tin-Lead	30 µin
TE Connectivity AMP Connectors 1-103957-0	1	Black	11	Receptacle	0.1 in				Female Socket	Free Hanging (In-Line)		Latch Lock	26 AWG	22 AWG	Gold	IDC	Discrete Ribbon Cable	15 µin		Closed End
TE Connectivity AMP Connectors 5-104363-1	1		2	Header		105 °C	-65 °C		Male Pin	Through Hole	Thermoplastic	Latch Holder							Shrouded - 4 Wall	Keying Slot	UL94 V-0	Board Board or Cable	0.23 in	0.1 in	Solder	Gold PdNi +Gold	0.535 in	3 A	Brass	0.13 in	All	Square	Black	Tin	15 µin	100 Ąin	Automotive General Purpose Medical Telecommunications	0.55 in
TE Connectivity AMP Connectors 5-147323-7	1		8	Header		105 °C	-65 °C		Male Pin	Right Angle Surface Mount	Thermoplastic	Latch Holder							Shrouded - 4 Wall	Board Lock Keying Slot Solder Retention	UL94 V-0	Board Board or Cable	0.23 in	0.1 in	Solder	Gold	0.2 in	3 A	Brass		All	Square	Black	Tin	30 µin
TE Connectivity AMP Connectors 5-104505-3								Crimp					26 AWG	22 AWG	Tin			100 µin																					Pin
TE Connectivity AMP Connectors 5-103671-4	1		5	Header		105 °C	-65 °C		Male Pin	Through Hole	Liquid Crystal Polymer (LCP)	Latch Holder							Shrouded - 4 Wall	Board Lock Keying Slot	UL94 V-0	Board Board or Cable	0.23 in	0.1 in	Solder	Tin	0.2 in		Brass	0.13 in	All	Square	Black	Tin	100 µin	100 Ąin	Automotive General Purpose Medical Telecommunications
TE Connectivity AMP Connectors 5-104361-8	1		9	Header		105 °C	-65 °C		Male Pin	Right Angle Through Hole	Thermoplastic	Latch Holder							Shrouded - 4 Wall	Board Lock Keying Slot	UL94 V-0	Board Board or Cable	0.23 in	0.1 in	Solder	Gold	0.2 in	3 A	Brass	0.145 in	All	Square	Black	Tin	15 µin
