M81969/14-01

Active

Astro Tool Corp

INS/REM TOOL,PLASTIC SIZE 22D

Search across all available documentation for this part.

Active

Astro Tool Corp

INS/REM TOOL,PLASTIC SIZE 22D

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M81969/14-01	M81969/14 Series

For Use With/Related Products	Circular Contacts, Size 22D	Circular Contacts, Size 22, Circular Contacts, 16-20 AWG, Circular Connector Contacts, Contacts, Size 20, Circular Contacts, Contacts, Circular Contacts, Size 10, Circular Contacts, Size 8, Circular Contacts, Size 22D
For Use With/Related Products	-	20 AWG
For Use With/Related Products	-	24 AWG
For Use With/Related Products	-	12 Size
Tool Type	Insertion Tool	Insertion Tool, Extraction Tool, Insertion/Extraction Tool, Insertion/Extraction Tool Kit

INS/REM TOOL PLASTIC SIZE 22

Part	For Use With/Related Products	Tool Type	For Use With/Related Products [Min]	For Use With/Related Products [Max]	For Use With/Related Products
Astro Tool Corp M81969/14-09	Circular Contacts, Size 22	Insertion Tool
Astro Tool Corp M81969/14-03	Circular Contacts, 16-20 AWG	Insertion Tool
Astro Tool Corp M81969/14-06	Circular Connector Contacts	Extraction Tool
Astro Tool Corp M81969/14-10	Contacts, Size 20	Insertion/Extraction Tool
Astro Tool Corp M81969/14-08	Circular Contacts	Extraction Tool
Astro Tool Corp M81969/14-11	Circular Contacts	Insertion Tool	20 AWG	24 AWG
Astro Tool Corp M81969/14-02	Contacts, Size 20	Insertion/Extraction Tool
Astro Tool Corp M81969/14-04	Contacts	Insertion/Extraction Tool			12 Size
Astro Tool Corp M81969/14-05	Circular Contacts, Size 10	Insertion/Extraction Tool Kit
Astro Tool Corp M81969/14-07	Circular Connector Contacts	Extraction Tool

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

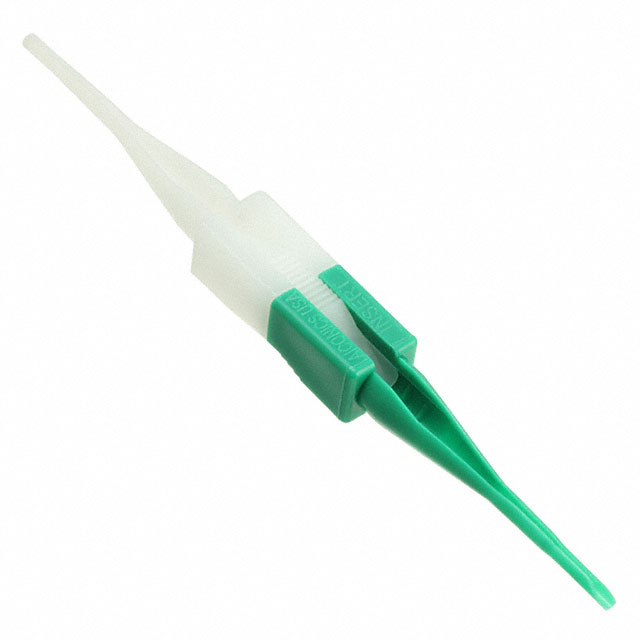

Insertion Tool For Circular Contacts, Size 22D
