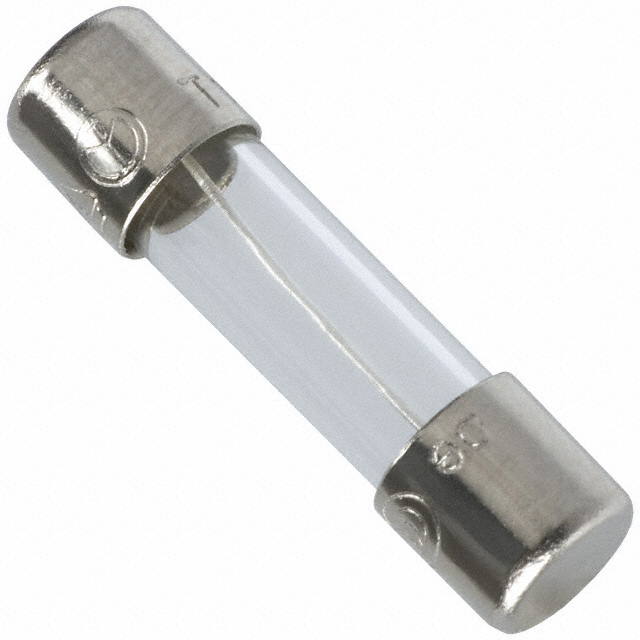

5ST 500
ObsoleteBel Fuse Inc.
FUSE GLASS 500MA 250VAC 5X20MM
5ST 500
ObsoleteBel Fuse Inc.
FUSE GLASS 500MA 250VAC 5X20MM
Description
General part information
5ST 500
500 mA 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 5ST 500 |
|---|---|
| Approval Agency | CE, SEMKO, CSA, UL, VDE, IMQ |
| Breaking Capacity | 35 A |
| Current Rating | 0.5 A |
| DC Cold Resistance | 0.54 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 1.4 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.201 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
