PE-0603CD330KTT
ObsoletePulse Electronics
FIXED IND 33NH 600MA 220MOHM SMD
PE-0603CD330KTT
ObsoletePulse Electronics
FIXED IND 33NH 600MA 220MOHM SMD
Description
General part information
PE-0603CD330KTT

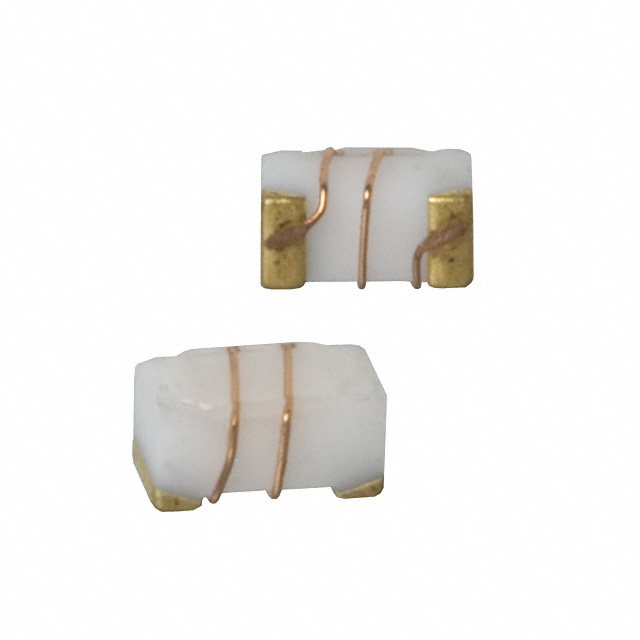

33 nH Unshielded Drum Core, Wirewound Inductor 600 mA 220mOhm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-0603CD330KTT |
|---|---|
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 220 mOhm |
| Frequency - Self Resonant | 2.3 GHz |
| Height - Seated (Max) | 0.04 in |
| Inductance | 33 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 (1608 Metric) |
| Q | 35 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.071 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
