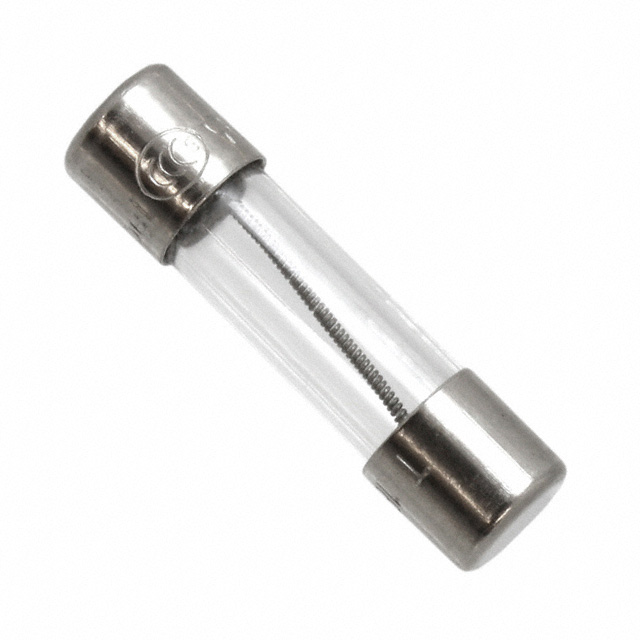

5ET 1-R
ObsoleteBel Fuse Inc.
FUSE GLASS 1A 250VAC 5X20MM
5ET 1-R
ObsoleteBel Fuse Inc.
FUSE GLASS 1A 250VAC 5X20MM
Description
General part information
5ET 1-R
1 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 5ET 1-R |
|---|---|
| Approval Agency | CCC, cURus, CE, CSA, VDE, SEMKO |
| Breaking Capacity | 150 A |
| Current Rating | 1 A |
| DC Cold Resistance | 0.11 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 28 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.201 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
