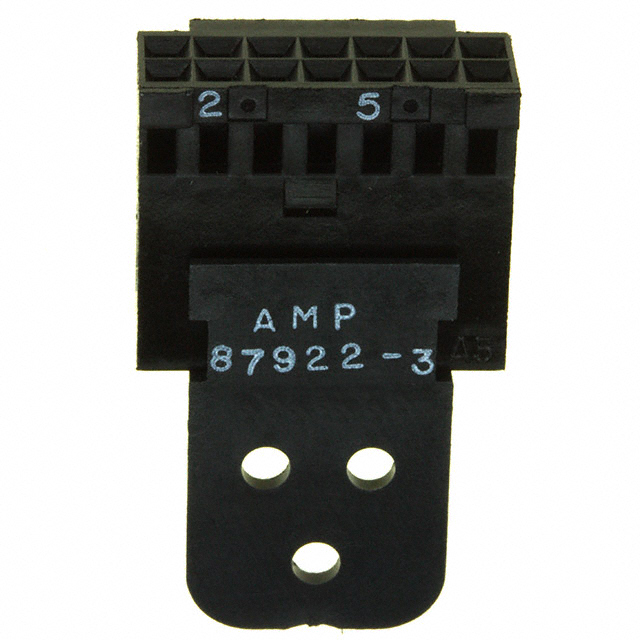

87922-3
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 14POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87922-3
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 14POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87922-3 | 87922 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Strain Relief | Strain Relief |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 14 | 10 - 18 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
87922 Series
CONN RCPT HSG 10POS 2.54MM
| Part | Note | Features | Insulation Material | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Row Spacing [x] | Row Spacing | Pitch [x] | Pitch [x] | Color | Contact Type | Number of Rows | Contact Termination | Connector Type | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87922-1 | Contacts Not Included | Strain Relief | Thermoplastic | Locking Ramp | -65 ░C | 105 ░C | 10 | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Black | Male or Female | 2 | Crimp | Receptacle | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 87922-3 | Contacts Not Included | Strain Relief | Thermoplastic | Locking Ramp | -65 ░C | 105 ░C | 14 | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Black | Male or Female | 2 | Crimp | Receptacle | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 87922-2 | Contacts Not Included | Strain Relief | Thermoplastic | Locking Ramp | -65 ░C | 105 ░C | 12 | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Black | Male or Female | 2 | Crimp | Receptacle | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 87922-4 | Contacts Not Included | Strain Relief | Thermoplastic | Locking Ramp | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Black | Male or Female | 2 | Crimp | Receptacle | Free Hanging (In-Line) | 16 | |
TE Connectivity AMP Connectors 87922-5 | Contacts Not Included | Strain Relief | Thermoplastic | Locking Ramp | -65 ░C | 105 ░C | 18 | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Black | Male or Female | 2 | Crimp | Receptacle | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.38 | |
| 10 | $ 6.43 | |||
| 25 | $ 6.27 | |||
| 50 | $ 6.10 | |||
| 100 | $ 5.72 | |||
| 300 | $ 5.69 | |||
| 500 | $ 5.35 | |||
| 1000 | $ 4.78 | |||
Description
General part information
87922 Series
14 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
