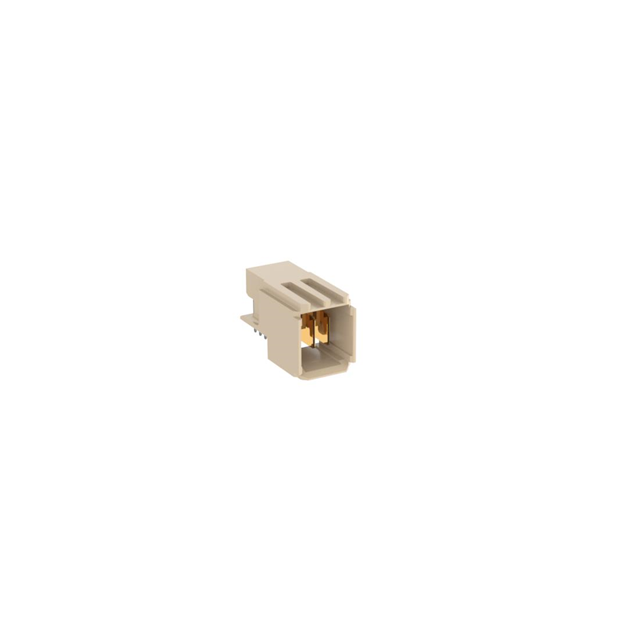

Specification	923539

Connector Type	Header, Male Pins
Contact Finish	Gold
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Position Types	Power
Termination	Press-Fit

- Series

...

Part	Thread Size	Thread Length	Color	Panel Hole Size	Operating Temperature (Max)	Operating Temperature (Min)	Material	Ingress Protection IP Rating	Ingress Protection Description	Type	Includes	Outside Cable Diameter (Max)	Outside Cable Diameter (Min)	Accessory Type	Thread Diameter	Thread Pitch	For Use With/Related Products	Features
Altech Corporation 5315664	PG16	0.394 in	Black	0.236 in	120 °C	-30 °C	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof	Cable Gland - Multiple Openings
Altech Corporation 5306116	PG16	0.394 in	Black	0.886 in	100 °C	-30 °C	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof	Cable Gland	Strain Relief	0.551 in	0.335 in
Altech Corporation 5315891	PG29	0.472 in	Gray	0.433 in	120 °C	-30 °C	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof	Cable Gland - Multiple Openings
Altech Corporation 8114252							Nitrile Butadiene Rubber (NBR)							Sealing Plug
Altech Corporation 5318301		0.433 in	Black	0.315 in	120 °C	-30 °C	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof	Cable Gland - Multiple Openings					25 mm	1.5 mm
Altech Corporation 3805219							6 Nylon 6 Polyamide (PA66)							Adapter			POLYFLEX® Conduit Tubing	PG21 Thread
Altech Corporation 5315697	PG29	0.472 in	Black	0.236 in	120 °C	-30 °C	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof	Cable Gland - Multiple Openings
Altech Corporation 5315212	PG21	0.433 in	Gray	0.236 in	120 °C	-30 °C	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof	Cable Gland - Multiple Openings
Altech Corporation 4221732		0.335 in	Silver	1.26 in	120 °C	-25 °C	Brass Nickel Plated	IP68	Dust Tight Waterproof	Cable Gland		0.709 in	0.453 in		32 mm	1.5 mm
Altech Corporation 5315210	PG21	0.433 in	Gray	0.276 in	120 °C	-30 °C	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof	Cable Gland - Multiple Openings
