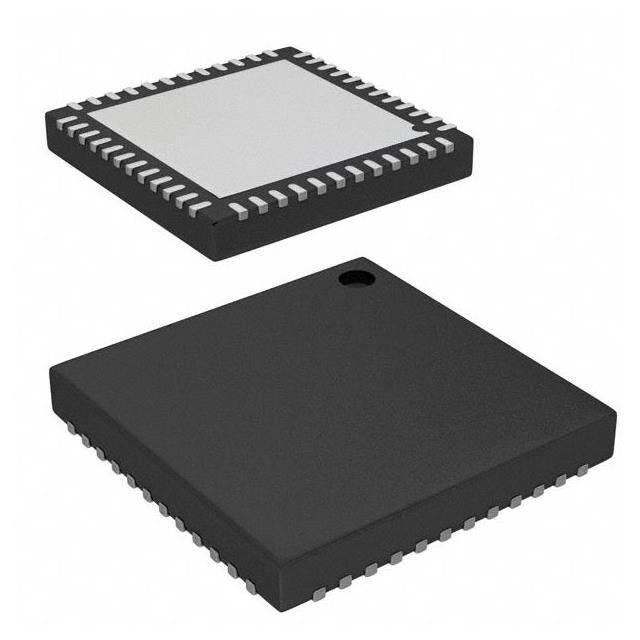

CY8C3244LTI-152

Obsolete

Infineon Technologies

IC MCU 8BIT 16KB FLASH 48QFN

Deep-Dive with AI

Search across all available documentation for this part.

CY8C3244LTI-152

Obsolete

Infineon Technologies

IC MCU 8BIT 16KB FLASH 48QFN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY8C3244LTI-152

Connectivity	USB, SPI, UART/USART, LINbus, I2C, EBI/EMI
Core Processor	8051
Core Size	8-Bit
Data Converters	A/D 16x12b, D/A 1x8b
EEPROM Size	512 x 8
Mounting Type	Surface Mount
Number of I/O	25
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	48-VFQFN Exposed Pad
Peripherals	CapSense, DMA, POR, PWM, WDT
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	2K x 8
Speed	50 MHz
Supplier Device Package	48-QFN (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

CY8C3244 Series

Part	Supplier Device Package	Program Memory Size	Number of I/O	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Peripherals	Mounting Type	Oscillator Type	Program Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters	Core Processor	Package / Case	Speed	Connectivity	RAM Size	Core Size	EEPROM Size	Package / Case [y]	Package / Case [y]
Infineon Technologies CY8C3244AXA-146	100-TQFP (14x14)	16 KB	62	1.71 V	5.5 V	CapSense DMA POR PWM WDT	Surface Mount	Internal	FLASH	85 °C	-40 °C	A/D 16x12b D/A 1x8b	8051	100-LQFP	50 MHz	EBI/EMI I2C LINbus SPI UART/USART USB	2K x 8	8-Bit	512 x 8
Infineon Technologies CY8C3244LTI-135	48-QFN (7x7)	16 KB	25	1.71 V	5.5 V	CapSense DMA LCD POR PWM WDT	Surface Mount	Internal	FLASH	85 °C	-40 °C	A/D 16x12b D/A 1x8b	8051	48-VFQFN Exposed Pad	50 MHz	EBI/EMI I2C LINbus SPI UART/USART	2K x 8	8-Bit	512 x 8
Infineon Technologies CY8C3244PVI-133	48-SSOP	16 KB	25	1.71 V	5.5 V	CapSense DMA LCD POR PWM WDT	Surface Mount	Internal	FLASH	85 °C	-40 °C	A/D 16x12b D/A 1x8b	8051	48-BSSOP	50 MHz	EBI/EMI I2C LINbus SPI UART/USART	2K x 8	8-Bit	512 x 8	0.295 in	7.5 mm
Infineon Technologies CY8C3244PVA-155	48-SSOP	16 KB	25	1.71 V	5.5 V	CapSense DMA POR PWM WDT	Surface Mount	Internal	FLASH	85 °C	-40 °C	A/D 16x12b D/A 1x8b	8051	48-BSSOP	50 MHz	EBI/EMI I2C LINbus SPI UART/USART	2K x 8	8-Bit	512 x 8	0.295 in	7.5 mm
Infineon Technologies CY8C3244AXA-159	100-TQFP (14x14)	16 KB	62	1.71 V	5.5 V	CapSense DMA LCD POR PWM WDT	Surface Mount	Internal	FLASH	85 °C	-40 °C	A/D 16x12b D/A 1x8b	8051	100-LQFP	50 MHz	EBI/EMI I2C LINbus SPI UART/USART USB	2K x 8	8-Bit	512 x 8
Infineon Technologies CY8C3244LTI-152	48-QFN (7x7)	16 KB	25	1.71 V	5.5 V	CapSense DMA POR PWM WDT	Surface Mount	Internal	FLASH	85 °C	-40 °C	A/D 16x12b D/A 1x8b	8051	48-VFQFN Exposed Pad	50 MHz	EBI/EMI I2C LINbus SPI UART/USART USB	2K x 8	8-Bit	512 x 8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CY8C3244 Series

8051 PSOC™ 3 CY8C32xx Microcontroller IC 8-Bit 50MHz 16KB (16K x 8) FLASH 48-QFN (7x7)

Documents

Technical documentation and resources

No documents available
