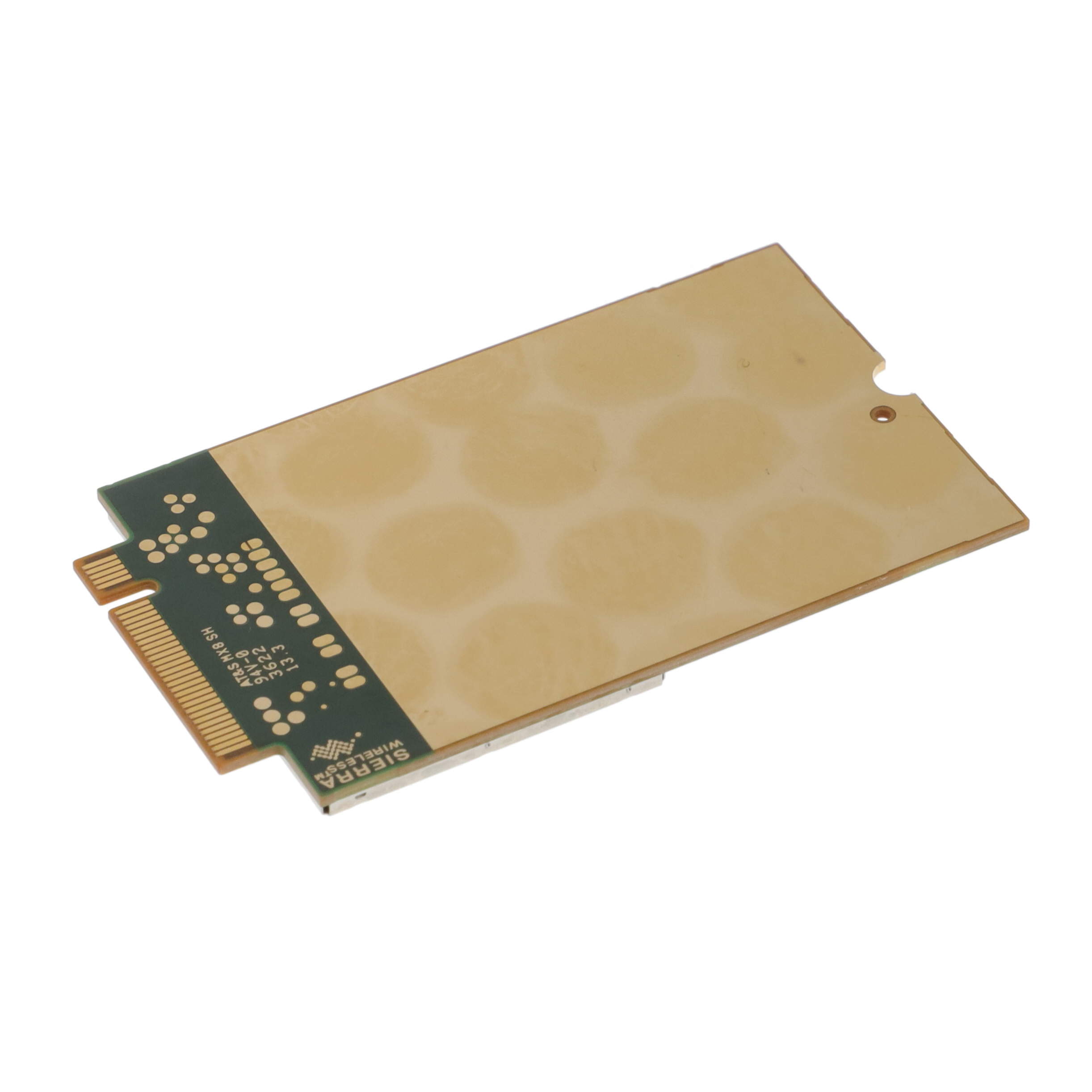

EM9191_1104903

Obsolete

Sierra Wireless

RF TXRX MOD CEL/NAV CARD

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF TXRX MOD CEL/NAV CARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EM9191_1104903	EM9191 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Data Rate	4.5 Gbps	4.5 Gbps
Frequency	6 GHz	6 GHz
Modulation	-	DSSS
Mounting Type	Card Edge	Card Edge
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	Module	Module
Protocol	Galileo, 4G, GNSS, GPS, Beidou, GLONASS, 5G, 3G	Galileo, 4G, GNSS, GPS, Beidou, GLONASS, 5G, 3G, LTE
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Serial Interfaces	USB	PCIe, USB
Serial Interfaces	-	M.2
Serial Interfaces	-	USB
Utilized IC / Part	-	EM9191

RF TXRX MOD CELLULAR CARD EDGE

Part	Mounting Type	Data Rate	Serial Interfaces	Serial Interfaces	Protocol	Package / Case	RF Family/Standard	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Modulation	Utilized IC / Part	Antenna Type
Sierra Wireless EM9191 5G SUB6 (1104629)	Card Edge	4.5 Gbps	M.2	USB	3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS	Module	Cellular
Sierra Wireless EM9191_1105108	Card Edge	4.5 Gbps			Beidou, Galileo, GLONASS, GNSS, GPS, LTE	Module	Cellular, Navigation	6 GHz	85 °C	-40 °C	PCIe, USB	DSSS	EM9191	Antenna Not Included
Sierra Wireless EM9191_1104903	Card Edge	4.5 Gbps			3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS	Module	Cellular, Navigation	6 GHz			USB			Antenna Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation 3G, 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPS Transceiver Module 6GHz Antenna Not Included Card Edge
