30-601-A-07
ActiveGrayhill Inc.

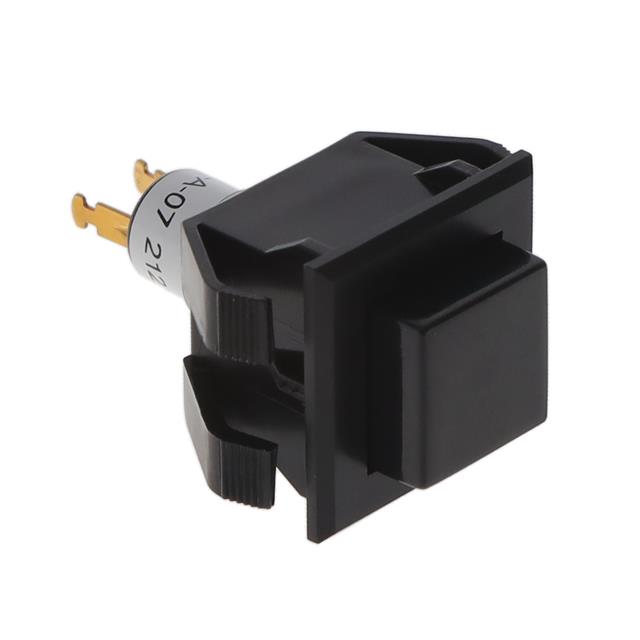

SWITCH PUSH SPST-NO 0.15A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
30-601-A-07
ActiveGrayhill Inc.
SWITCH PUSH SPST-NO 0.15A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 30-601-A-07 | 30-601 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Button, Square | Button, Square, Round, Plunger |
| Circuit | SPST-NO | SPST-NO |
| Color - Actuator/Cap | Black | White, Black, Red |
| Current Rating (Amps) | 150 mA | 150 mA |
| Electrical Life | 1000000 Cycles | 1000000 Cycles |
| Features | - | Epoxy Sealed Terminals |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In, Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Panel Cutout Dimensions | - | 6.75 mm |
| Panel Cutout Dimensions [x] | 19.05 mm | 19.05 mm |
| Panel Cutout Dimensions [y] | 19.05 mm | 19.05 mm |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | Solder Lug | Solder Lug, Wire Leads |
| Type | Standard | Standard |
| Voltage Rating - DC | 5 V | 5 V |
30-601 Series
SWITCH PUSH SPST-NO 0.15A 5V
| Part | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Actuator Type | Circuit | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Marking | Voltage Rating - DC | Electrical Life | Color - Actuator/Cap | Mounting Type | Type | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 30-601-A-01 | Off-Mom | 85 °C | -40 °C | Solder Lug | Button, Square | SPST-NO | 19.05 mm | 19.05 mm | No Marking | 5 V | 1000000 Cycles | White | Panel Mount, Snap-In | Standard | 150 mA | ||
Grayhill Inc. 30-601-A-07 | Off-Mom | 85 °C | -40 °C | Solder Lug | Button, Square | SPST-NO | 19.05 mm | 19.05 mm | No Marking | 5 V | 1000000 Cycles | Black | Panel Mount, Snap-In | Standard | 150 mA | ||
Grayhill Inc. 30-601 RED | Off-Mom | 85 °C | -40 °C | Solder Lug | Round, Plunger | SPST-NO | No Marking | 5 V | 1000000 Cycles | Red | Panel Mount, Rear | Standard | 150 mA | 6.75 mm | |||
Grayhill Inc. 30-601 BLK-EW | Off-Mom | 85 °C | -40 °C | Wire Leads | Round, Plunger | SPST-NO | No Marking | 5 V | 1000000 Cycles | Black | Panel Mount, Rear | Standard | 150 mA | 6.75 mm | Epoxy Sealed Terminals |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.82 | |
| 10 | $ 9.70 | |||
| 25 | $ 9.39 | |||
Description
General part information
30-601 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
