969047-3
ActiveTE Connectivity AMP Connectors

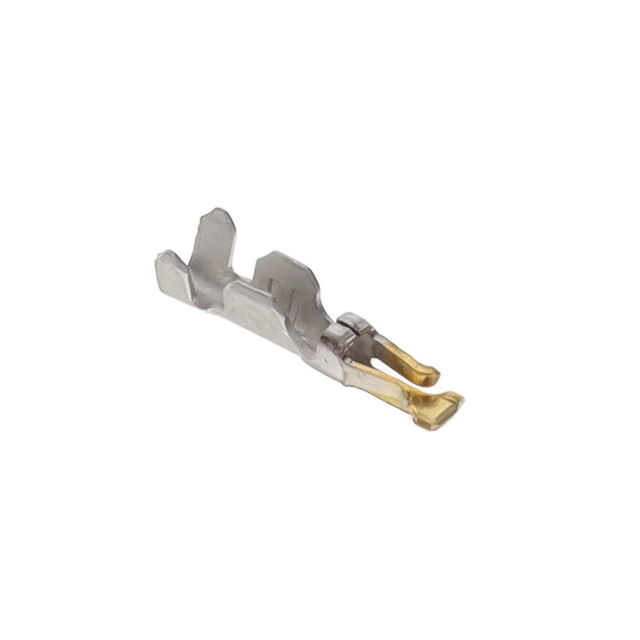

CONN SOCKET 24-28AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
969047-3
ActiveTE Connectivity AMP Connectors
CONN SOCKET 24-28AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 969047-3 |
|---|---|
| Contact Finish | PdNi +Gold, Gold |
| Contact Finish Thickness | 31.5 µin |
| Contact Finish Thickness | 0.8 µm |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.14 | |||
| Tape & Reel (TR) | 30000 | $ 0.10 | ||
| 60000 | $ 0.09 | |||
| 90000 | $ 0.09 | |||
969047 Series
CONN SOCKET 24-28AWG CRIMP GOLD
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 969047-3 | 24 AWG | 28 AWG | Socket | 31.5 µin | 0.8 µm | Gold, PdNi +Gold | Crimp |
Description
General part information
969047 Series
Socket Contact Gold or PdNi +Gold 24-28 AWG Crimp
Documents
Technical documentation and resources
No documents available
