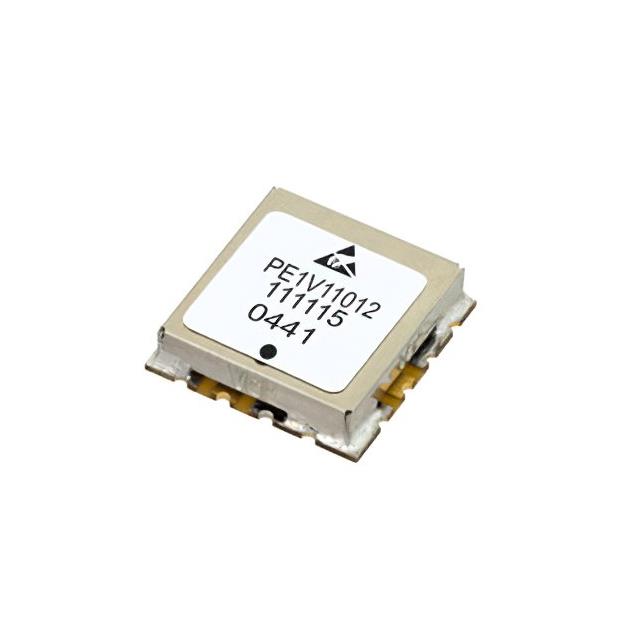

PE1V11012
ActivePasternack
SURFACE MOUNT (SMT) VOLTAGE CONT
PE1V11012
ActivePasternack
SURFACE MOUNT (SMT) VOLTAGE CONT
Description
General part information
PE1V11012
350MHz Center Frequency 0 V ~ 9 V Voltage Controlled Oscillator 11 ±1 dBm -18 2nd Harmonic Typ (dBc)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE1V11012 |
|---|---|
| 2nd Harmonic (Typ) (dBc) | -18 dBc |
| Frequency - Center | 350 MHz |
| Frequency Range (Max) | 400 MHz |
| Frequency Range (Min) | 300 MHz |
| Height | 0.126 in |
| Icc Max | 22 mA |
| Maximum Tuning Voltage (VDC) | 9 V |
| Minimum Tuning Voltage (VDC) | 0 V |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 16-SMD, No Lead |
| Phase Noise Typ (dBc/Hz) | -102 dBc/Hz |
| Power (dBm) (Nominal) | 11 dBm |
| Power (dBm) Tolerance | 1 dBm |
| Pushing (MHz/V) | 0.6 MHz/V |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.5 in |
| Voltage - Supply | 15 VDC |
