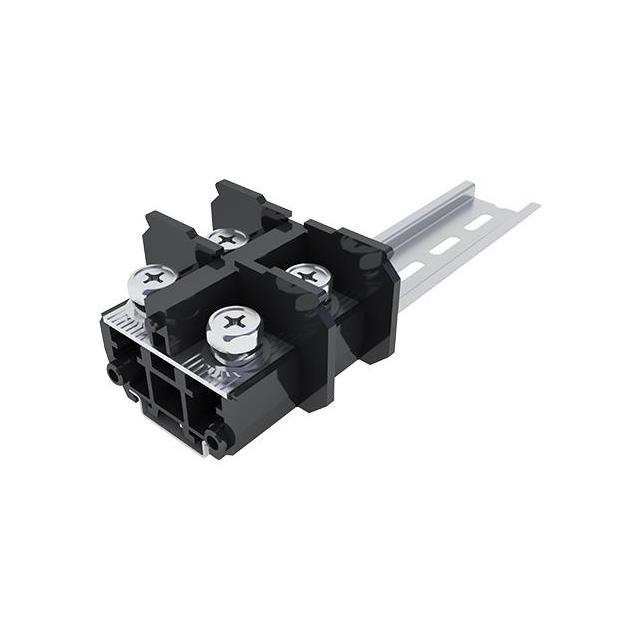

Specification	DKB150

Barrier Type	3 Wall (Tri)
Bottom Termination	Closed
Color	Black
Current Rating	190 A
Material - Insulation	PC, Polycarbonate
Material Flammability Rating	UL94 V-2
Mounting Type	Channel, DIN Rail Mount
Number of Circuits	2
Number of Rows	2
Number of Wire Entries	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge	3/0-8 AWG
