4833.3200
ObsoleteSCHURTER Inc.

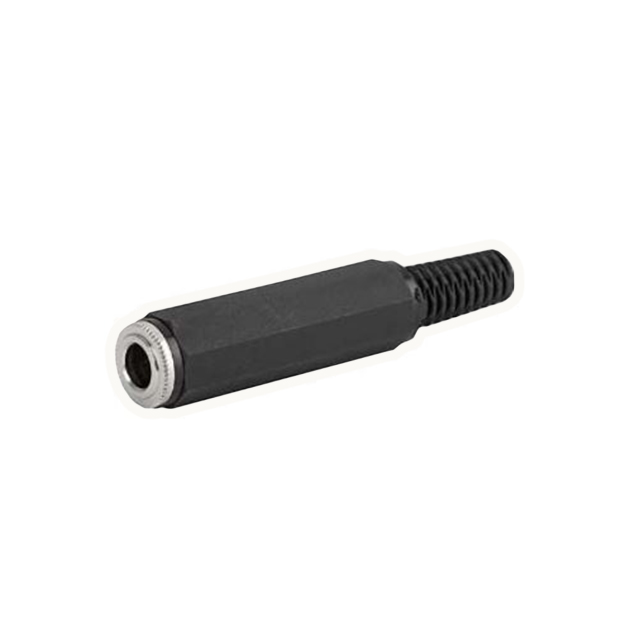

CONN JACK MONO 6.35MM
4833.3200
ObsoleteSCHURTER Inc.
CONN JACK MONO 6.35MM
Description
General part information
4833.3200
6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 4833.3200 |
|---|---|
| Actual Diameter | 0.248 in |
| Body Color | Black |
| Cable Opening | 0.248 in |
| Connector Type | Phone Jack |
| Contact Material | Brass |
| Contact Material - Plating | Gold |
| Current Rating | 1 A |
| Gender | Female |
| Housing Material | Plastic |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 1.22 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
