UFL-2LPA-088Y2T-A-200
ActiveHirose Electric Co Ltd
PLUG, CABLE ASSEMBLY, 200MM CABL
UFL-2LPA-088Y2T-A-200
ActiveHirose Electric Co Ltd
PLUG, CABLE ASSEMBLY, 200MM CABL
Description
General part information
UFL-2LPA-088Y2T-A-200

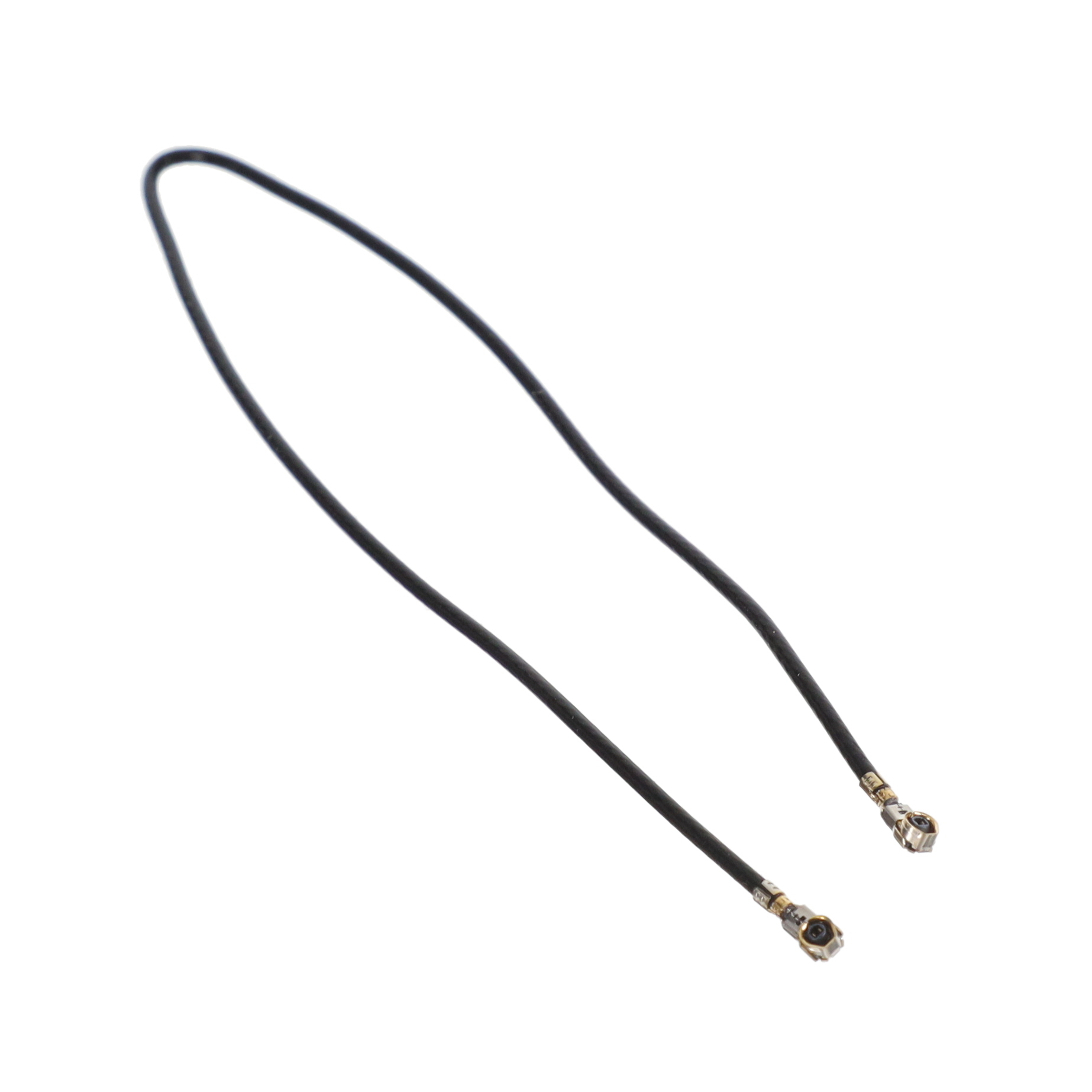

Cable Assembly Coaxial U.FL (UMCC) to U.FL (UMCC) 1.37mm OD Coaxial Cable 7.874" (200.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | UFL-2LPA-088Y2T-A-200 |
|---|---|
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | U.FL (UMCC) Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, U.FL (UMCC) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.37 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 1.37 |
| Color | Black |
| Frequency - Max | 6000 MHz |
| Length | 7.874 in |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC) |
