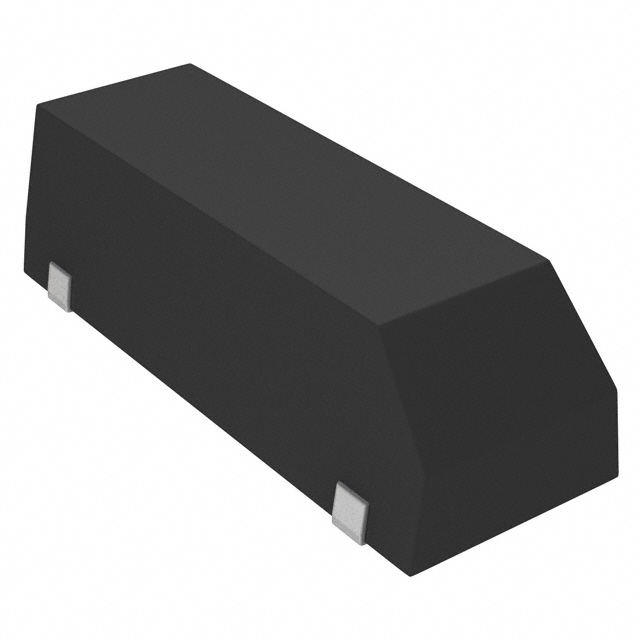

ABSM2-50.000MHZ-4-T
ObsoleteAbracon LLC
CRYSTAL 50.0000MHZ 18PF SMD
ABSM2-50.000MHZ-4-T
ObsoleteAbracon LLC
CRYSTAL 50.0000MHZ 18PF SMD
Description
General part information
ABSM2-50.000MHZ-4-T
50 MHz ±30ppm Crystal 18pF 80 Ohms 4-SOJ, 9.40mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | ABSM2-50.000MHZ-4-T |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 50 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.146 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | 3rd Overtone |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 4-SOJ |
| Package Diameter | 9.4 mm |
| Package Name | 4-SOJ |
| Package Pitch | 9.4 mm |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.181 in |
| Type | MHz Crystal |
