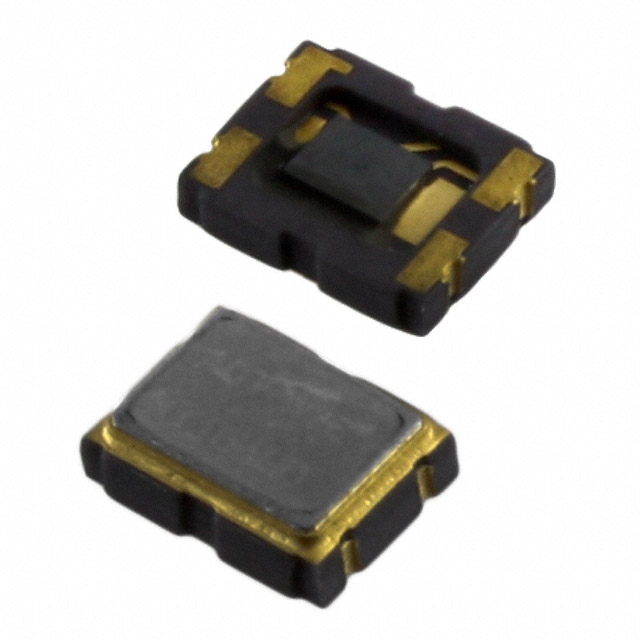

7Q26000001
ObsoleteTXC CORPORATION
XTAL OSC TCXO 26.0000MHZ SNWV
7Q26000001
ObsoleteTXC CORPORATION
XTAL OSC TCXO 26.0000MHZ SNWV
Description
General part information
7Q26000001
26 MHz TCXO Clipped Sine Wave Oscillator 2.8V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 7Q26000001 |
|---|---|
| Base Resonator | Crystal |
| Frequency | 26 MHz |
| Height - Seated (Max) | 0.043 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
