3-148-278
ActiveSCHURTER Inc.
MSMII-16 INDICATOR 00 00 NONE N
3-148-278
ActiveSCHURTER Inc.
MSMII-16 INDICATOR 00 00 NONE N
Description
General part information
3-148-278

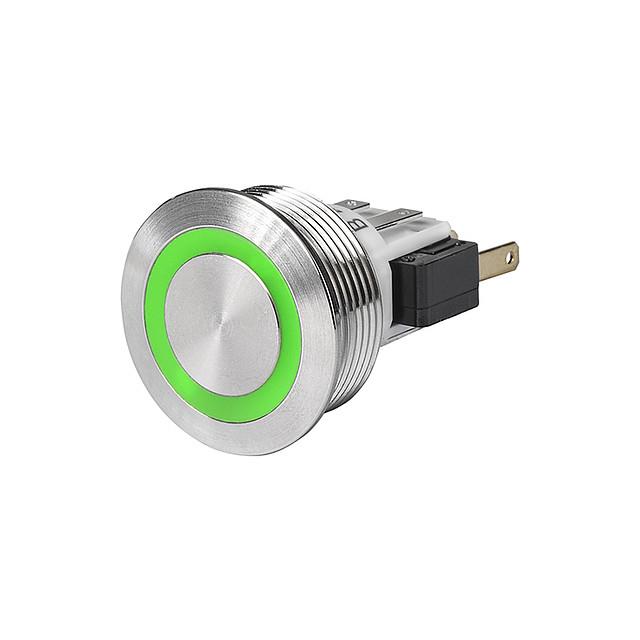

LED Panel Indicator Red, Green, Blue (RGB) Diffused 5V Red, 5V Green, 5V Blue 25mA Red, 25mA Green, 25mA Blue Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-148-278 |
|---|---|
| Current (Blue) | 25 mA |
| Current (Green) | 25 mA |
| Current (Red) | 25 mA |
| Current Colors | Blue, Green, Red |
| Ingress Protection | IP67 |
| Lamp Color | Blue, Green, Red |
| Lens Color | Colorless |
| Lens Diameter | 12.8 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Diffused |
| Panel Cutout Length | 0.63 \ |
| Panel Cutout Shape | Rectangle |
| Panel Cutout Width | 0.59 \ |
| Ratings | DC |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage (Blue) | 5 V |
| Voltage (Green) | 5 V |
| Voltage (Red) | 5 V |
| Voltage Color | Blue, Red, Green |
