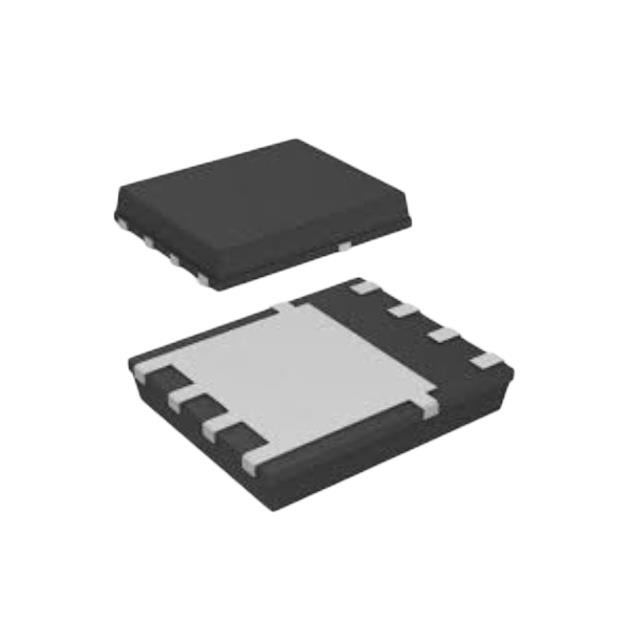

Specification	AM7358N

Current - Continuous Drain (Id) (Ta)	11 A
Current - Continuous Drain (Id) (Tc)	28 A
Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On)	4.5 V
Drive Voltage (Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Max)	11 nC
Input Capacitance (Ciss) (Max)	828 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	8-PowerVDFN
Package Length	3 mm
Package Name	8-DFN
Package Width	3 mm
Power Dissipation (Max)	22 W, 3.5 W
Rds On (Max)	18 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max)	1 V
