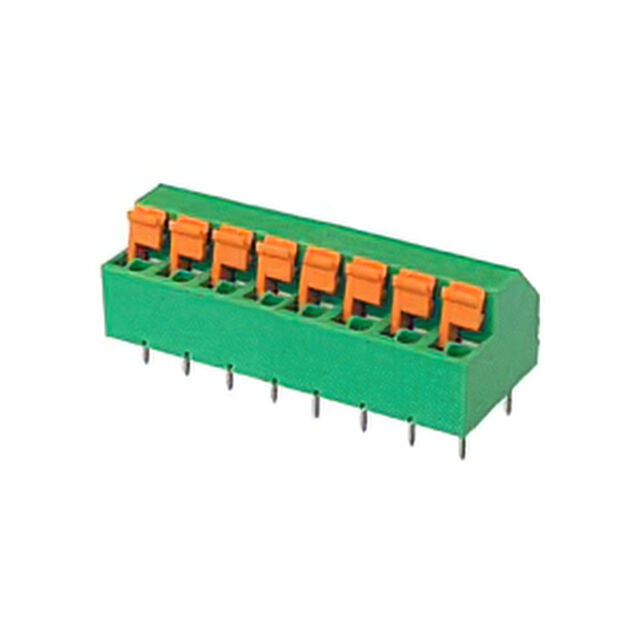

Specification	0397000604

Clamp Material - Plating	Steel, Stainless
Color	Green
Contact Material	Brass
Current	11 A
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation (Angle)	45 °
Mating Orientation (Angle) (Alternate)	135 °
Mating Orientation (Description)	Angle with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Plating	Tin Plated
Positions Per Level	4
Voltage	300 V
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG
Wire Termination	Leg Spring, Screwless, Push-In Spring

039700 Series

...

Part	Pitch	Mating Orientation (Angle)	Mating Orientation (Description)	Mating Orientation (Angle) (Alternate)	Wire Termination	Mounting Type	Number of Levels	Voltage	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Positions Per Level	Current	Color	Contact Material	Plating	Operating Temperature (Min)	Operating Temperature (Max)	Clamp Material - Plating	Housing Material	Mating Orientation	Features
Molex 0397000304	0.394 in	45 °	Angle with Board	135 °	Push Button Clamp Screwless	Through Hole	1	300 V	26 AWG	14 AWG	4	10 A	Gray	Brass	Tin Plated	-40 °C	105 °C	Steel Stainless	Nylon 6/6 PA66 Polyamide
Molex 0397000504	0.295 in	45 °	Angle with Board	135 °	Push Button Clamp Screwless	Through Hole	1	300 V	26 AWG	14 AWG	4	10 A	Gray	Brass	Tin Plated	-40 °C	105 °C	Steel Stainless	Nylon 6/6 PA66 Polyamide
Molex 0397000011	0.1 in				Push Button Clamp Screwless	Through Hole	1	150 V	26 AWG	18 AWG	11	6 A	Green	Brass	Tin Plated	-40 °C	105 °C	Steel Stainless	Nylon 6/6 PA66 Polyamide	Horizontal with Board
Molex 0397000403	0.197 in	45 °	Angle with Board	135 °	Push Button Clamp Screwless	Through Hole	1	300 V	26 AWG	14 AWG	3	10 A	Gray	Brass	Tin Plated	-40 °C	105 °C	Steel Stainless	Nylon 6/6 PA66 Polyamide
Molex 0397007506	0.138 in	45 °	Angle with Board	135 °	Push Button Clamp Screwless	Through Hole	1	300 V	20.5 AWG	16 AWG	6	5 A	Gray	Phosphor Bronze	Tin Plated	-40 °C	105 °C		Nylon 6/6 PA66 Polyamide
Molex 0397000910	0.197 in				Push Button Clamp Screwless	Through Hole	1	300 V	22 AWG	14 AWG	10	10 A	Green	Brass	Tin Plated	-40 °C	105 °C	Steel Stainless	Nylon 6/6 PA66 Polyamide	Vertical with Board
Molex 0397000111	5.08 mm	45 °	Angle with Board	135 °	Push Button Clamp Screwless	Through Hole	1	300 V	26 AWG	12 AWG	11	18 A	Green	Brass	Tin Plated	-40 °C	105 °C	Steel Stainless	Nylon 6/6 PA66 Polyamide		Interlocking (Side)
Molex 0397000912	0.197 in				Push Button Clamp Screwless	Through Hole	1	300 V	22 AWG	14 AWG	12	10 A	Green	Brass	Tin Plated	-40 °C	105 °C	Steel Stainless	Nylon 6/6 PA66 Polyamide	Vertical with Board
Molex 0397000704	0.138 in	45 °	Angle with Board	135 °	Push Button Clamp Screwless	Through Hole	1	300 V	20.5 AWG	16 AWG	4	5 A	Gray	Phosphor Bronze	Tin Plated	-40 °C	105 °C		Nylon 6/6 PA66 Polyamide
Molex 0397000505	0.295 in	45 °	Angle with Board	135 °	Push Button Clamp Screwless	Through Hole	1	300 V	26 AWG	14 AWG	5	10 A	Gray	Brass	Tin Plated	-40 °C	105 °C	Steel Stainless	Nylon 6/6 PA66 Polyamide
