09694020214

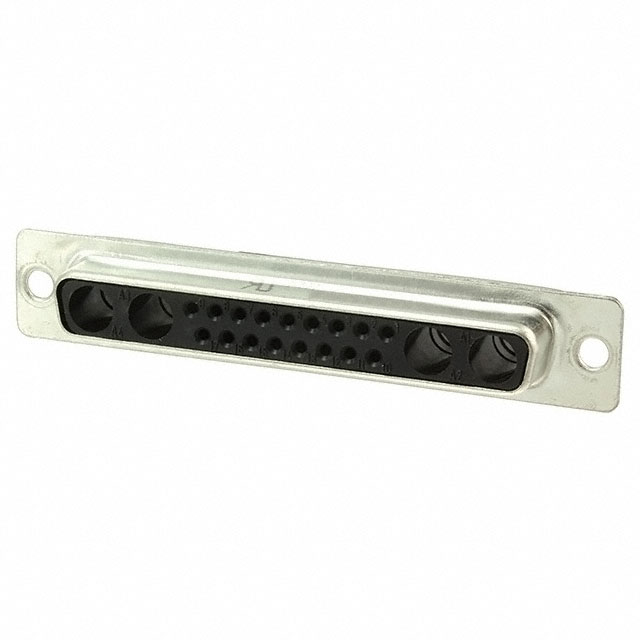

Receptacle for Female Contacts Housing D-Sub, Combo Connector 21 (17 + 4 Coax or Power) Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 09694020214 |
|---|---|
| Connector Layout | 21WA4, C, DC |
| Connector Style | Combo, D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Coax or Power, Signal and Coax, Power, Signal |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions (Special) | 4 |
| Number of Positions (Standard) | 17 |
| Number of Positions (Total) | 21 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Position Types | Power, Coax |
| Shell Material | Steel |
| Shell Size | 4 |
