Description
General part information

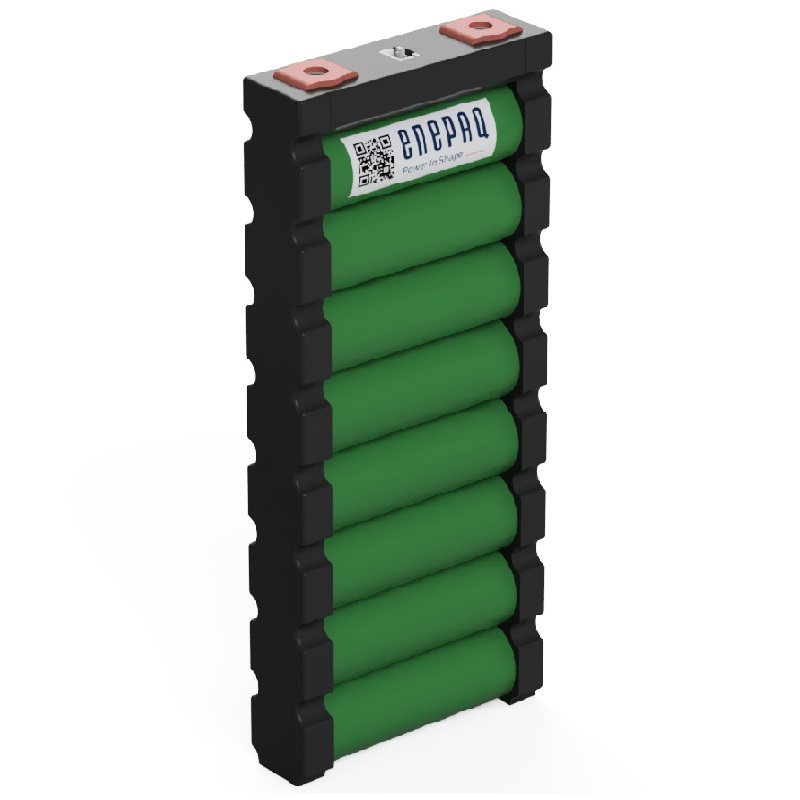

Li1x8p VTC6 Battery Pack
18650 3.6 V Lithium-Ion Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | Li1x8p VTC6 Battery Pack |
|---|---|
| Battery Cell Size | 18650 |
| Battery Chemistry | Lithium-Ion |
| Capacity (Charge) | 24 Ah |
| Number of Cells | 8 |
| Rechargeability | Yes |
| Size / Dimension Height | 0.8 in |
| Size / Dimension Length | 6.32 in |
| Size / Dimension Width | 2.74 in |
| Structure | Side to Side |
| Structure Cells | 8 |
| Structure Rows | 1 |
| Termination Style | Bolt Connections |
| Voltage - Rated | 3.6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
