1001-002-01100

Active

CnC Tech, LLC

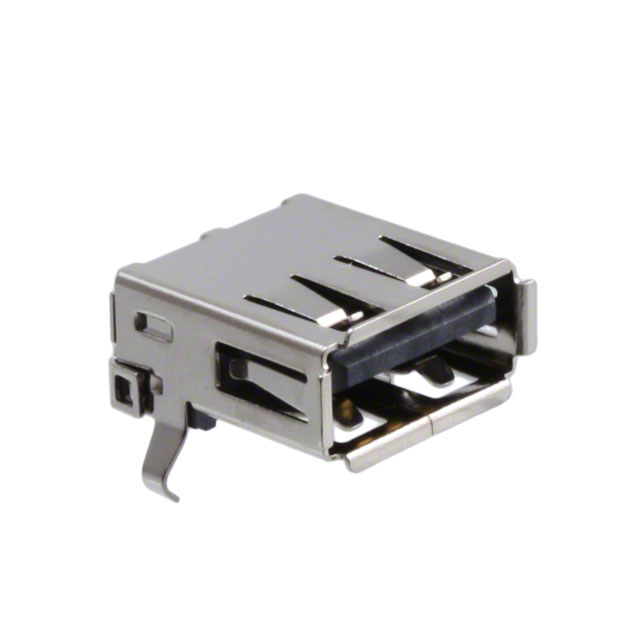

CONN RCPT USB1.1 TYPEA 4P SMD RA

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCPT USB1.1 TYPEA 4P SMD RA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1001-002-01100	1001-002 Series

Connector Type	USB-A (USB TYPE-A)	USB-B, USB-A (USB TYPE-A)
Contact Finish	Gold	Gold
Current Rating (Amps)	1.5 A	1.5 A
Gender	Receptacle	Plug, Receptacle
Insulation Color	-	White
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	1500	1500
Mounting Feature	Horizontal	Horizontal
Mounting Type	Surface Mount, Right Angle	Free Hanging (In-Line), Surface Mount, Right Angle
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell/Shielding Material	Brass	Brass
Shielding	-	Shielded
Specifications	USB 1.1	USB 1.1
Termination	Solder	Solder
Voltage - Rated	30 V	30 V

CONN USB 1.1 TYPE B PL 4 POS ST CABLE MOUNT 4 TERMINAL 1 PORT BAG

Part	Mounting Type	Connector Type	Shielding	Number of Ports	Insulation Color	Number of Contacts [custom]	Specifications	Termination	Gender	Material Flammability Rating	Voltage - Rated	Current Rating (Amps)	Mounting Feature	Mating Cycles	Shell/Shielding Material	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]
CnC Tech, LLC 1001-002-BE-KIT	Free Hanging (In-Line)	USB-B	Shielded	1	White	4	USB 1.1	Solder	Plug
CnC Tech, LLC 1001-002-BL-KIT	Free Hanging (In-Line)	USB-B	Shielded	1	White	4	USB 1.1	Solder	Plug
CnC Tech, LLC 1001-002-01100	Surface Mount, Right Angle	USB-A (USB TYPE-A)		1		4	USB 1.1	Solder	Receptacle	UL94 V-0	30 V	1.5 A	Horizontal	1500	Brass	Gold	50 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 1.1 Receptacle Connector 4 Position Surface Mount, Right Angle
