Description
General part information
00406465

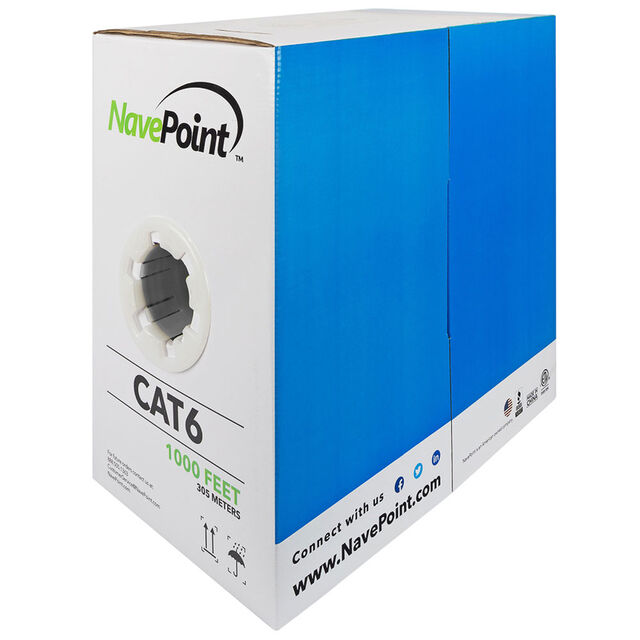

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable Green 23 AWG 1000.0' (304.8m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 00406465 |
|---|---|
| Cable Type | Cat6, Multi-Pair |
| Conductor Arrangement | Twisted |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Jacket (Insulation) Diameter | 0.24 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.024 in |
| Jacket Color | Green |
| Length | 1000 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Wire Gauge | 23 AWG |
