400-1079-00
ActiveSwift Bridge Technologies
40GHZ2.92MM(M)TO2.92MM(M)0.6M
400-1079-00
ActiveSwift Bridge Technologies
40GHZ2.92MM(M)TO2.92MM(M)0.6M
Description
General part information
400-1079-00

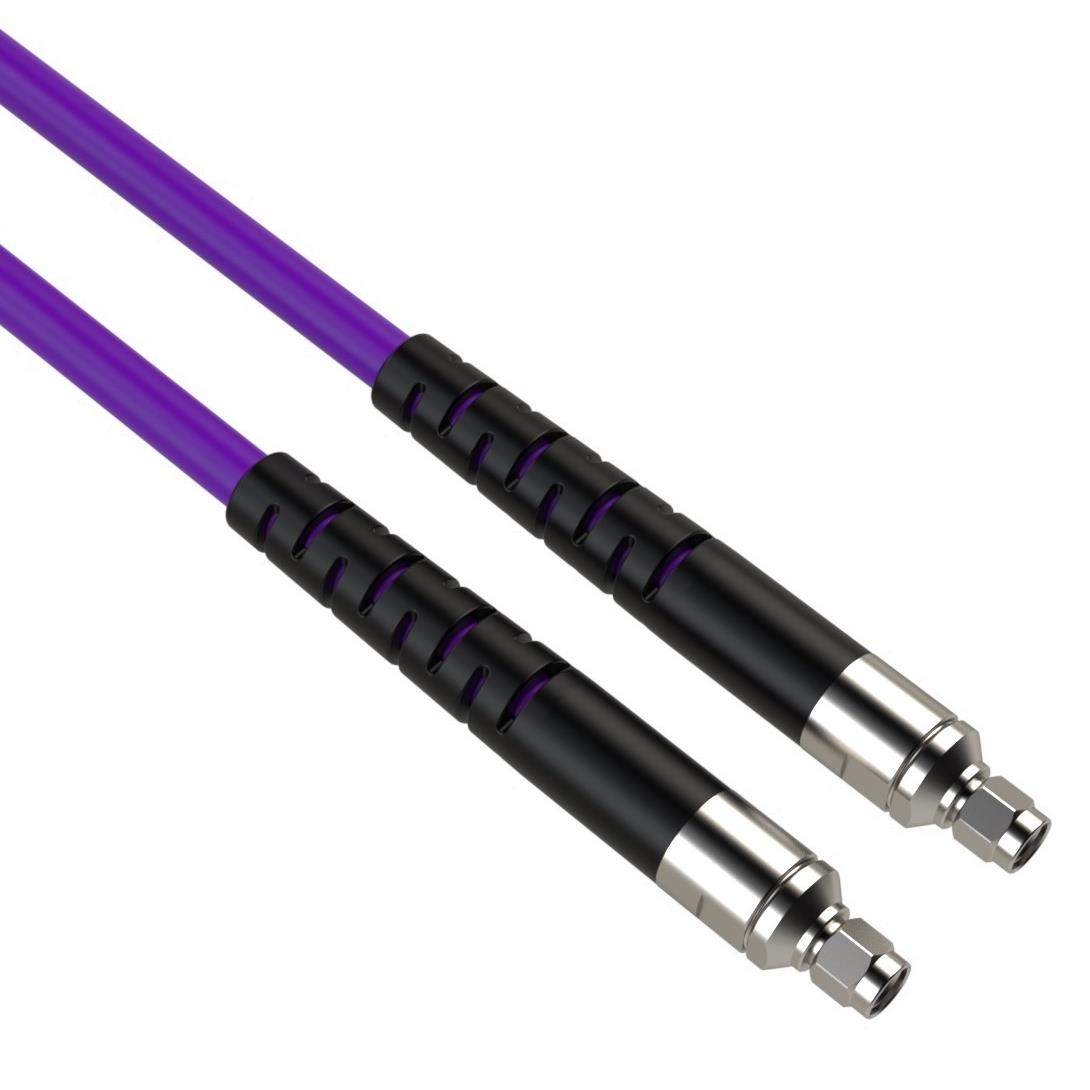

Cable Assembly Coaxial 2.92mm to 2.92mm 23.62" (600.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 400-1079-00 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Color | Purple |
| Connector Impedance | 50 Ohms |
| Features | Shielded, Ruggedized, Phase Stable, Armored Cable |
| Frequency - Max | 40 Gbps |
| Length | 23.62 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -45 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to 2.92mm |
